What Is a Speed Drive Motor and How Does It Work
The core of every current laundry device is its motor, a part that has seen a huge change from the loud, bulky engines of earlier times to the advanced setups in top-quality units now. This shift matters a lot in a worldwide market where power savings and customer satisfaction drive most purchases. This piece examines the workings of speed drive technology. It also covers its real advantages for various washing machine styles. Plus, it explains why picking a production partner with strong in-house capabilities, such as Huzhou Nanyang Electric-Motor Co., Ltd., truly impacts the lasting dependability of your products.
Introduction to Modern Motor Technology in Laundry Appliances
The story of the washing machine motor offers an engaging look at engineering advances. It has progressed from basic mechanical turning to intricate, program-guided operation. In the beginning, most units depended on plain induction motors that operated at one fixed speed. As a result, the drum either rotated at maximum force or stayed still.
Today’s buyers want a device that treats soft fabrics and tough materials with equal gentleness. Such expectations gave rise to the speed drive motor. This term includes variable frequency and inverter methods. These setups let the motor change its performance according to the load’s weight and material kind. When you review the products offered by Nanyang Motor, it becomes clear how this development has turned into targeted options for all sorts of washers and dryers.
Evolution From Traditional Motors to Variable Speed Systems
Standard AC induction motors served as reliable mainstays during the 20th century. They featured a straightforward structure that delivered dependability at modest expense for common top-loading units. However, with tougher worldwide power rules, the field moved to adjustable speed setups. These changes remove the necessity for set-ratio belts and wasteful gear systems.
Core Definition of the Speed Drive or Inverter Motor
A speed drive motor basically consists of a motor managed by an electronic inverter. This device alters the frequency and voltage of the electricity supply. Consequently, it enables smooth speed changes without fixed steps.
Impact of Advanced Motor Systems on Washing Machine Performance
Adding these improved motors has boosted washing output to around 68 percent. At the same time, it has raised water removal output to about 75 percent in numerous front-loading types. Moreover, by excluding the carbon brushes in older DC motors, makers have wiped out the key cause of physical breakdowns and power disturbances.
Exploring the Core Mechanism of a Speed Drive Motor?
To grasp how these motors operate fully, one must go beyond the outer shell and examine the electronic core that directs the energy stream.
If you delve into detailed specs, the R&D center at Nanyang offers insight into the creation and testing of these detailed systems. They ensure endurance for thousands of hours of use. The aim here is to foster smooth teamwork between the electric parts and the turning drum. In doing so, it cuts down on shaking and warmth buildup.
Conversion Process From Alternating Current to Precision Direct Current
The setup starts by taking the usual Alternating Current from the household socket and turning it into Direct Current via a rectifier. This DC energy serves as a fresh base. Therefore, the control unit can reshape the electric signal to match any required frequency for a certain rotation speed.
Digital Control via Frequency Modulation and Inverter Technology
Through Pulse Width Modulation, the inverter breaks the DC signal into bursts that imitate an AC wave at a varied frequency. This method allows the unit to shift from a gentle, slow roll in the cleaning phase to a fast 1400 RPM whirl in the drying phase.
Real-Time Feedback Loop for Load Sensing and Torque Adjustment
Included sensors, like Hall effect types, keep track of the rotor’s place and pace all the time. They inform the control unit if the load sits unevenly. For instance, if the motor spots a soaked heavy cover on one drum side, it can right away tweak the force to stop the device from shifting around the wash area.
Why Choosing the Right Drive System Defines Product Quality?
The drive setup goes beyond merely making the drum move. In fact, it stands as the top element shaping the durability and standing of your device line. Selecting a weak motor results in excess heat, loud sounds, and frequent returns. Such issues can harm your profits badly.
Partnering with a proven maker like Huzhou Nanyang Electric-Motor Co., Ltd. brings gains from more than three decades in the field and a flawless quality history in tough markets.
Energy Efficiency Breakthroughs via Brushless DC and Direct Drive Designs
Using 0.2 mm very fine silicon steel layers in the coil method, modern motors now save about 30 percent more power than basic ones. These structures lessen power waste as heat. That is why a solid motor stays fairly cool after a two-hour heavy use trial.
Significant Noise Reduction for Enhanced User Experience
Dropping belts and brushes keeps sound under 55dB, similar to everyday talk volume. This proves a strong appeal for current households, where the wash space often sits close to sleep or common rooms.
Extended Operational Lifespan with Minimal Mechanical Wear
With no brushes to erode and fewer parts needing oil, brushless and direct drive types often endure over ten years. Records show some motors running steadily for more than a decade, even in harsh hot areas like those in the Middle East.

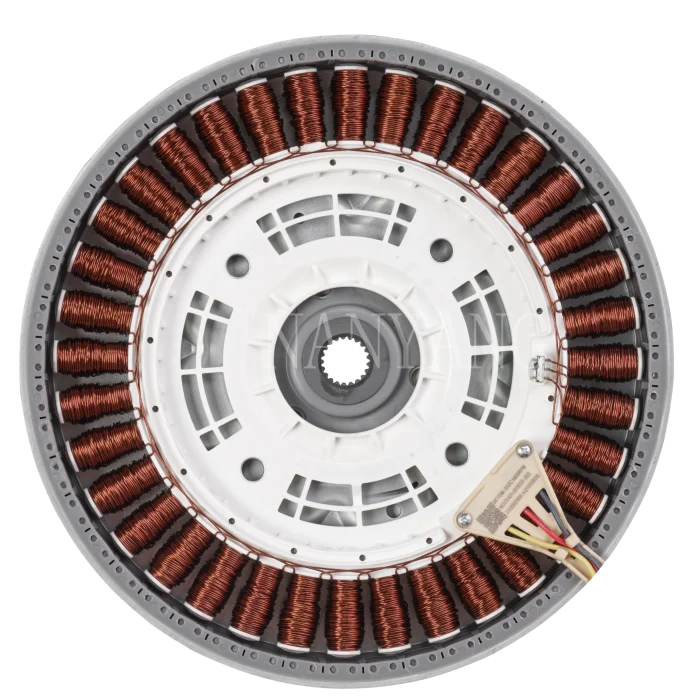

Spotlight on Nanyang Motor’s Industry-Leading DD Motor Series
For front-loading washers holding up to 25KG, the Direct Drive motor marks the height of today’s laundry tech. Rather than a belt linking the motor to the drum, the motor attaches straight to the tub’s rear. This one-to-one transfer ensures all motor power flows right to the clothes movement.
Elimination of Belts via 1:1 Direct Drive Transmission
Removing the belt cuts out the rubbing and sliding that build up as rubber ages and lengthens. This straight link gives steadier turning and permits quicker shifts in motion, vital for new wash routines.
Optimized Energy Savings for Drum Washing Machines up to 25KG
DD motors work more thriftily since they avoid the middle transfer wastes in belt setups. This thrift leads to a 20 percent drop in power use for users, aiding your items to fit the newest eco rules.
Precision Agitation Patterns for Superior Fabric Care
With the control unit holding full sway over the drum, it can perform special actions like “stepping” or “swinging” that belts cannot handle. As a result, this yields a 15 percent gain in cleaning power, all while treating soft materials with greater care.
Exploring the High-End DDM Motor Solutions for Pulsator Washers?
Though front-loaders draw much focus in Western areas, sturdy pulsator or top-load washers stay very common around the world for their size and simple handling. For these, the DDM Motor delivers a strong-torque, direct-drive answer that swaps out old motor-and-clutch parts.
This motor style fits units with up to 25KG capacity. It supplies the strong force required to shift big water amounts and weighty loads. When you contact the Nanyang team, they will share exact torque and voltage details to fit these into your current frame plans.
High Torque Output for Heavy-Duty Top-Loading Machines
Pulsator units need high initial torque to beat the resistance of a full water tub. The DDM line is built to supply this strength without getting too warm. Thus, it guarantees even big coverings get cleaned well, without the motor halting or straining.
Advanced Integrated Controller for Seamless System Compatibility
These motors include a built-in control unit that handles various signal types like PWM and CAN bus. Because of this, your design group finds it simpler to link the motor with the machine’s other electric systems.
Whisper-Quiet Operation Below 58dB in Pulsator Models
Old top-loaders often sound very loud, but the no-belt DDM approach lowers noise to ≤58dB. This change makes upscale top-loaders more appealing to people in flats or compact living spaces.
The Nanyang Advantage in Global Motor Manufacturing?
Achievement in the device sector often hinges on slim profits and steady supply lines. A key draw of working with a focused producer lies in their skill to shield you from raw material price swings. By making 95 percent of core pieces inside, they uphold firm quality levels while holding costs 7-10 percent below rivals who use outside sources.
Holding a 35 percent share in China and 15 percent worldwide for washing machine inverter motors, their scale runs large. This size supports steady spending on automatic lines that raise output by 55 percent per worker. In turn, it ensures your requests arrive promptly each time.
Vertical Integration From Enameled Wire to Complete Motor Assemblies
Overseeing the whole production chain allows checking every piece, from ends to rotor covers, for exactness within ≤0.02mm error. This fine attention explains why their goods regularly meet strict global checks like UL, CE, and TUV.
Zero-Defect Quality Record Backed by International Certifications
Keeping a no-failure mark since 2019 demands over 30 separate check stages per motor. Each fine motor gets a special code for full tracking after sales during the device’s full run.
Proven Reliability in Extreme Climates and High-Usage Scenarios
Be it the dampness in a wash room or intense desert warmth, these motors feature IP55 shielding and heat-proof wires. This toughness explains why big worldwide brands keep long-term ties with the firm.
FAQ
Q1: What is the main difference between a BLDC motor and a DD motor for a washing machine?
A: While both use inverter technology, a BLDC motor typically uses a belt to drive the drum, whereas a Direct Drive (DD) motor is mounted directly to the tub, eliminating transmission parts for quieter operation and higher energy efficiency.
Q2: How does a speed drive motor help save on electricity bills?
A: These motors use stepless speed regulation to only consume the exact amount of power needed for a specific load, and features like 0.2 mm ultra-thin silicon steel sheets can make them 30% more efficient than traditional induction motors.
Q3: Is it safe to use these electronic motors in the humid environment of a laundry room?
A: Yes, quality motors are designed with an IP55 protection rating to prevent water spray and dust intrusion, and they include built-in overheat and short-circuit protection that automatically cuts power if an abnormality is detected.
Q4: What should I do if my washing machine motor suddenly stops turning?
A: You should first check for mechanical obstructions in the drum; if the motor is clear, it may be a communication failure in the electronic control system or a triggered protection mechanism, which can often be identified via the motor’s self-diagnostic function.
Q5: Can these motors be customized for different international voltage standards?
A: Absolutely, manufacturers can provide customized interface services to adjust voltage parameters for 110V North American models or 220-240V European and Asian models, while ensuring compliance with CE, UL, and other regional certifications.
