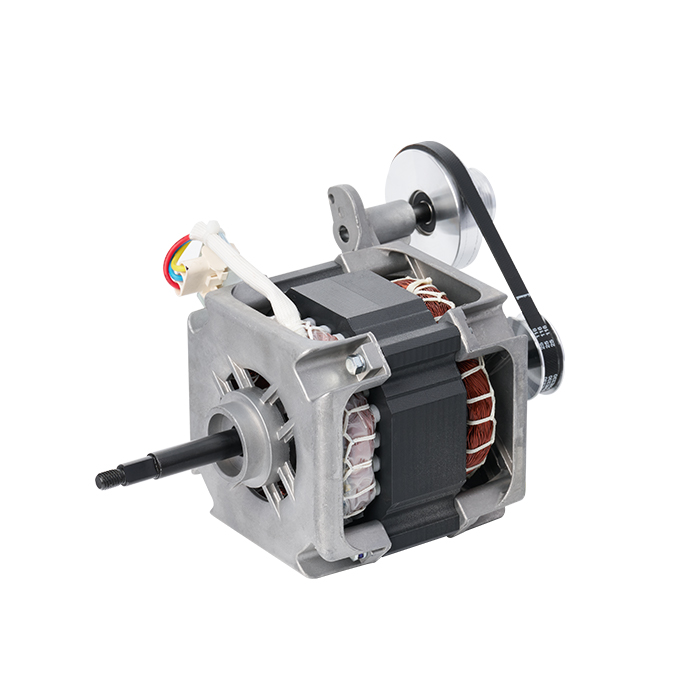

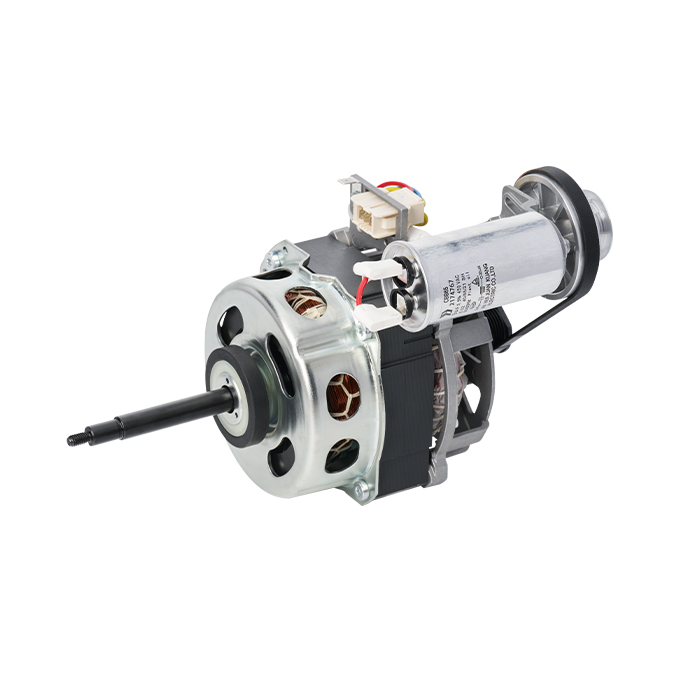

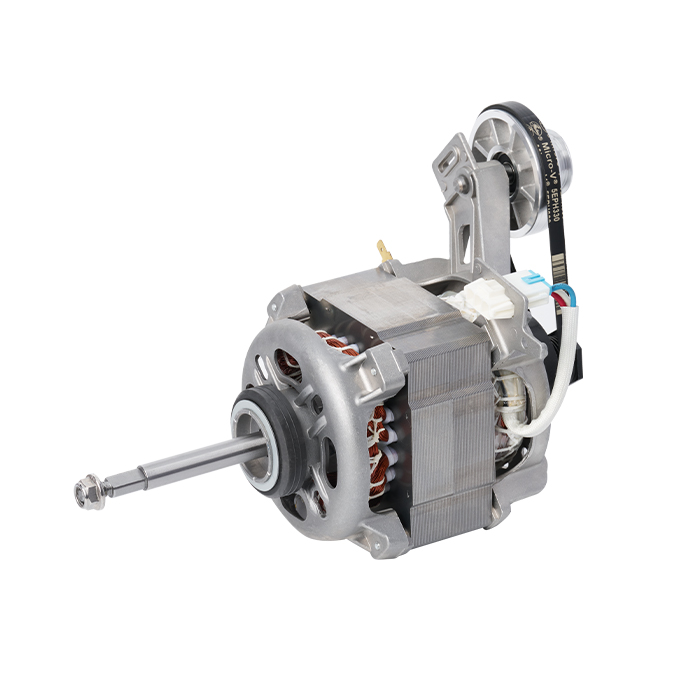

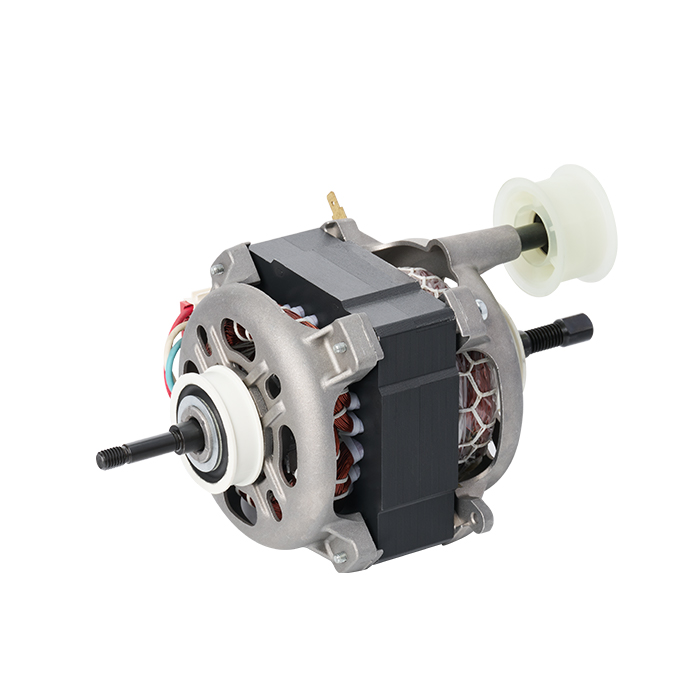

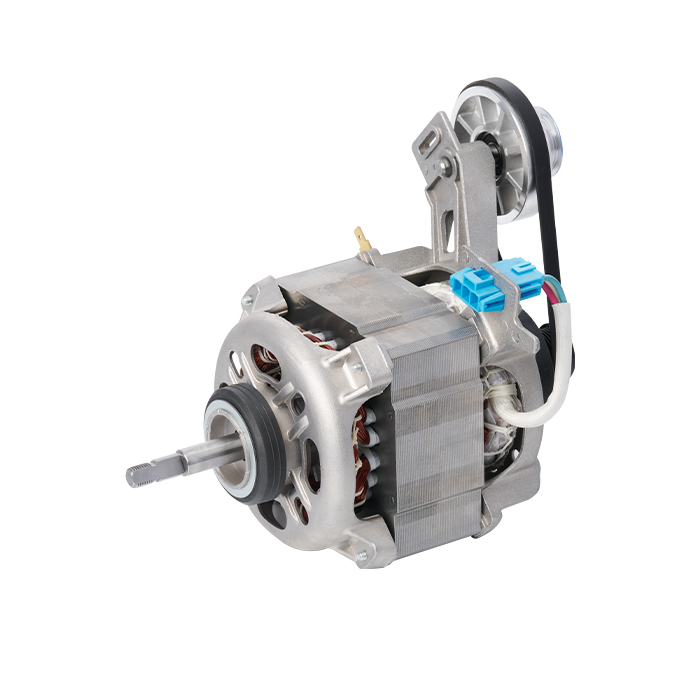

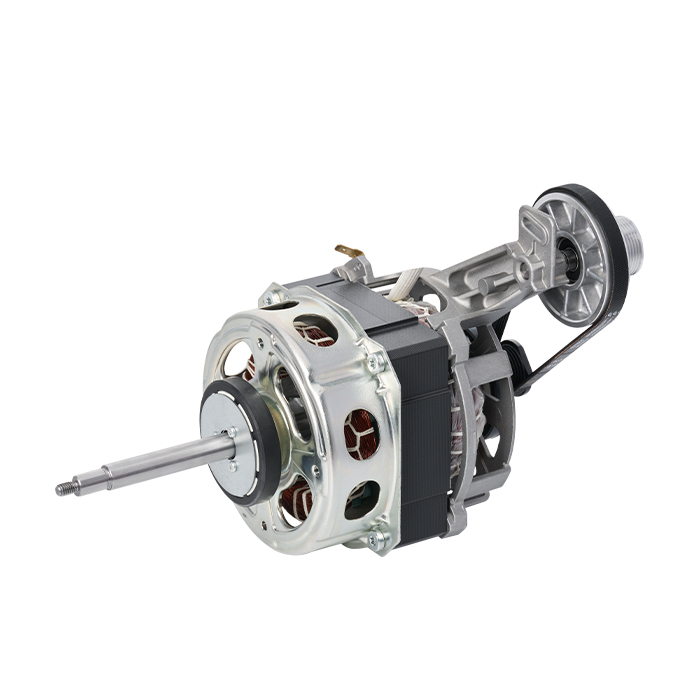

AC Motor
Model：AC
The technology is mature, with strong overload resistance, suitable for high-temperature and high-humidity environments. It is easy to maintain and has a low cost, making it an ideal choice for stable and durable economic dryers.
Contact
Us
Product Parameters
| Technical parameter | ||||
|---|---|---|---|---|
| NO | ITEM | AC Clothes Dryer Motor | BLDC Clothes Dryer Motor | Clothes Dryer Motor with Centrifugal switch |
| 1 | Driving mode | Horizontal direct drive | Horizontal direct drive | Horizontal direct drive |
| 2 | Insulation grade | CLASSF | CLASSF | CLASSF |
| 3 | Stator poles | 4P/2P | 18P | 4P |
| 4 | Rotor poles | 4P/2P | 8P/10P | 4P |
| 5 | Power | 3/2～1/4HP | 1/5HP | 1/5～1/3HP |
| 6 | Motor Efficiency |
>58% |
≥85% |
≥50% |
| 7 | Torque |
0.41~1.30N.m |
0.53N.m |
0.81~1.30N.m |
| 8 | Transmission structure | 2POLE/1POLE,AL | 2POLE/1POLE,AL | 1POLE |
| 9 | Speed rang | – | – | 1630~1725rpm |
Technical Illustration
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
