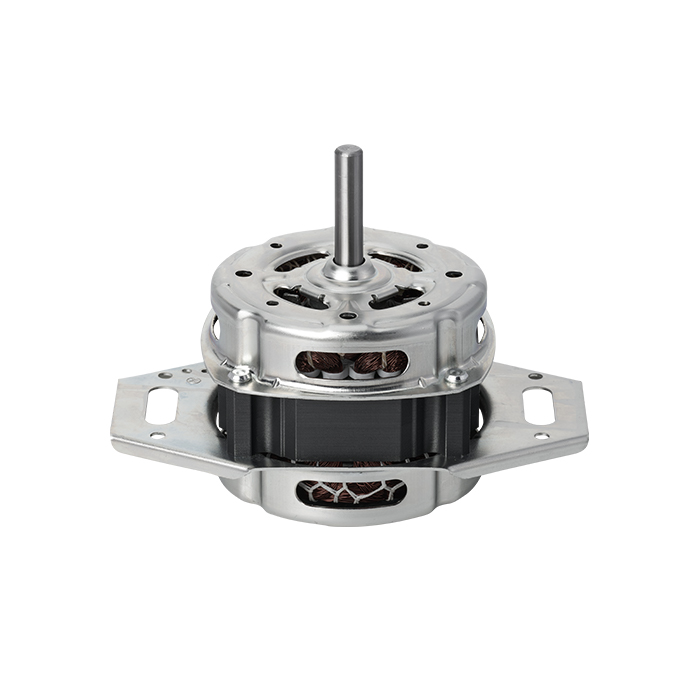

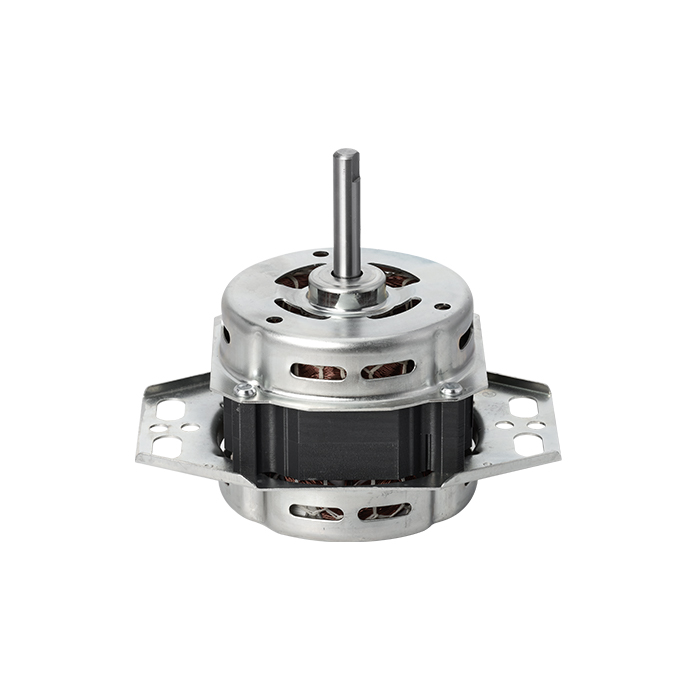

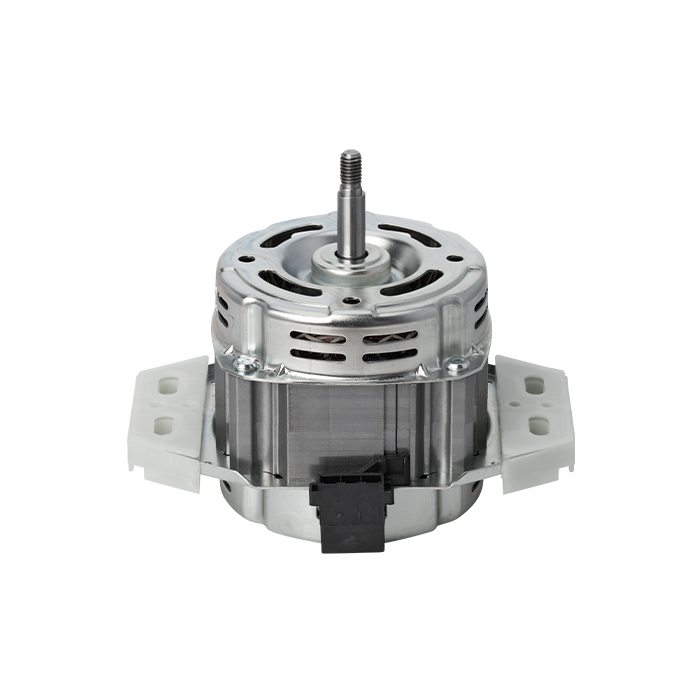

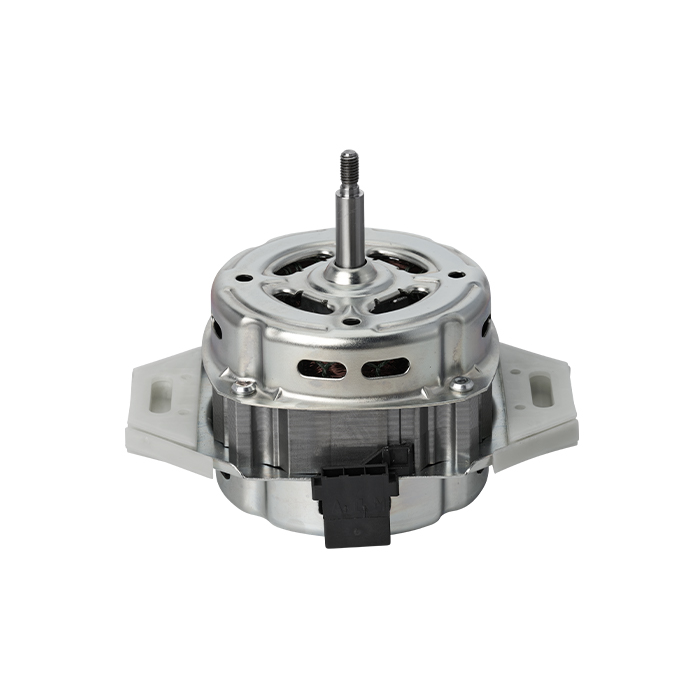

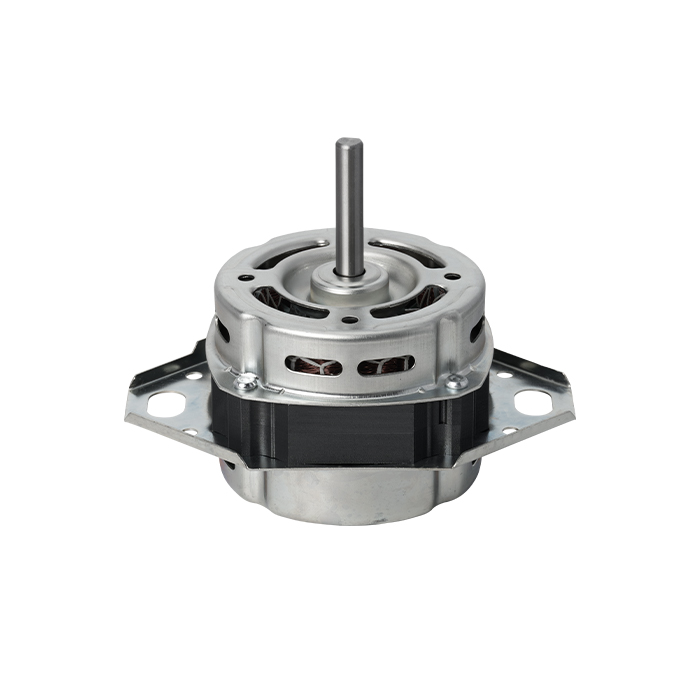

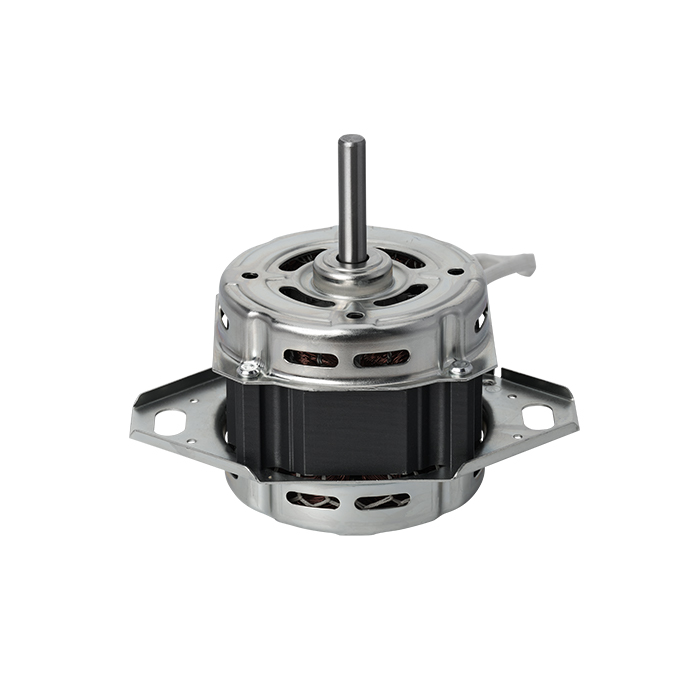

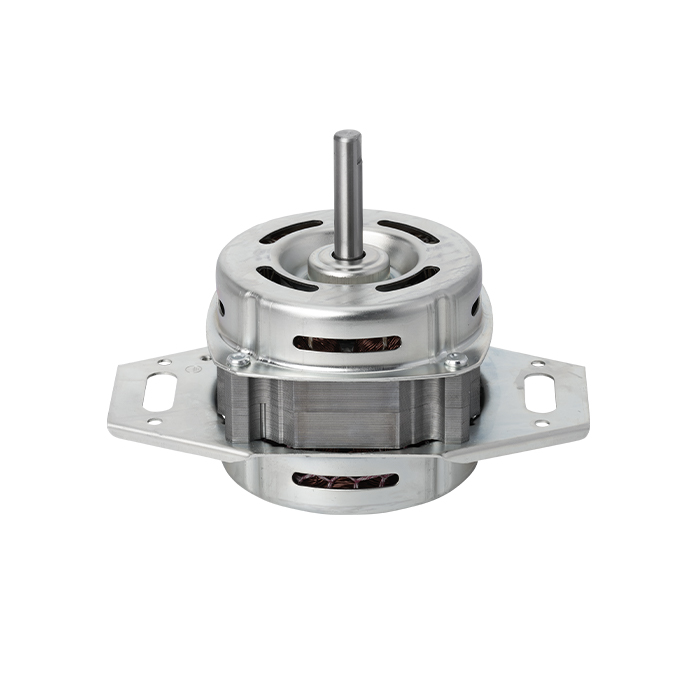

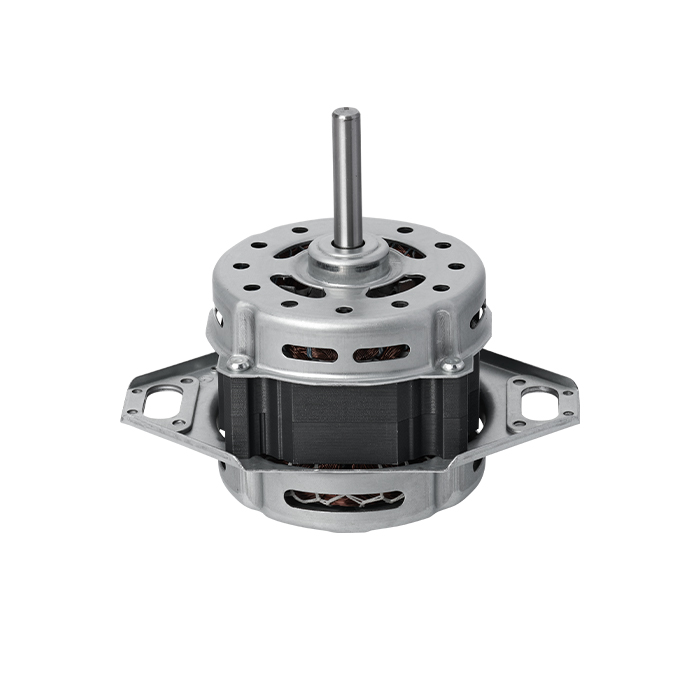

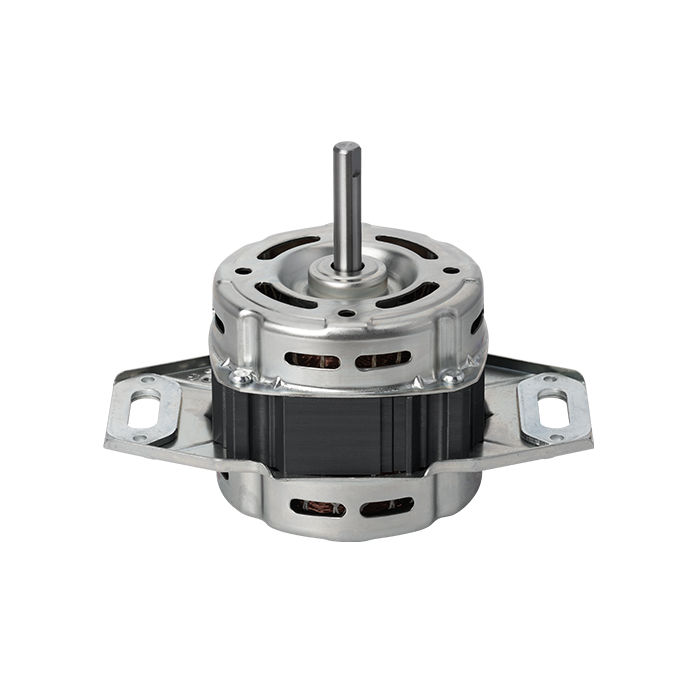

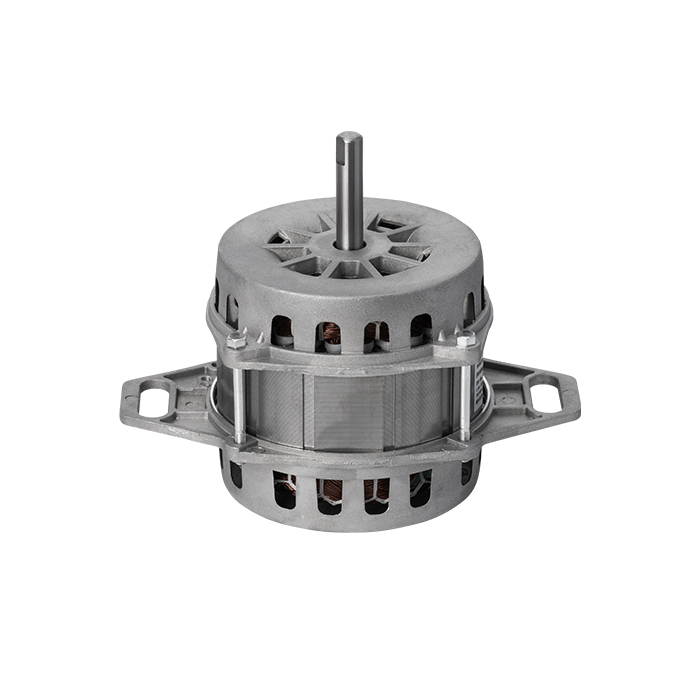

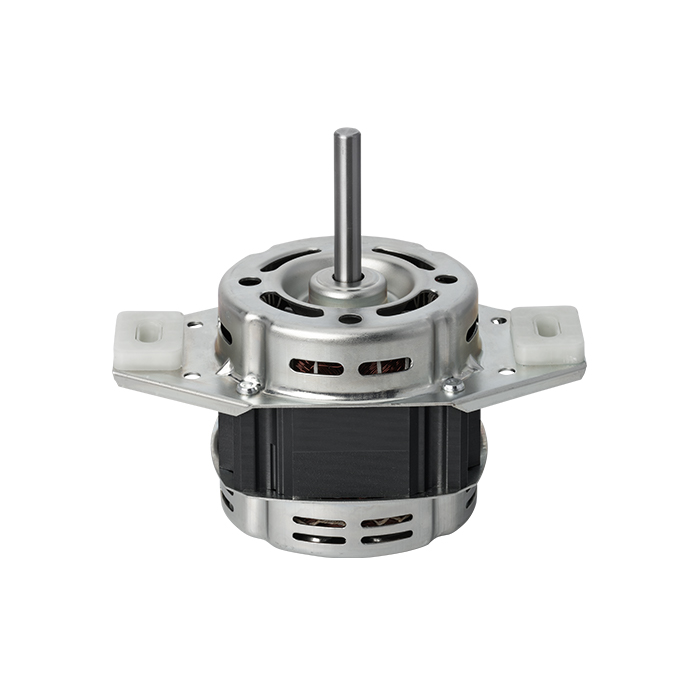

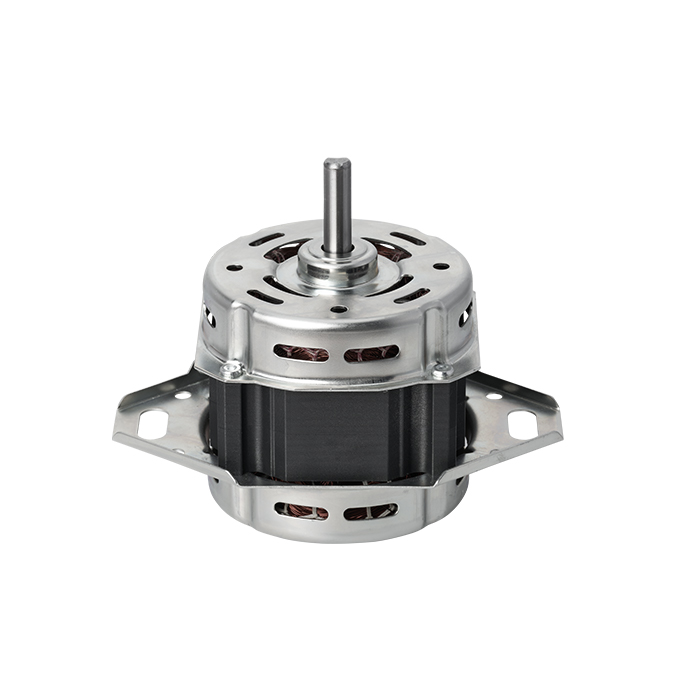

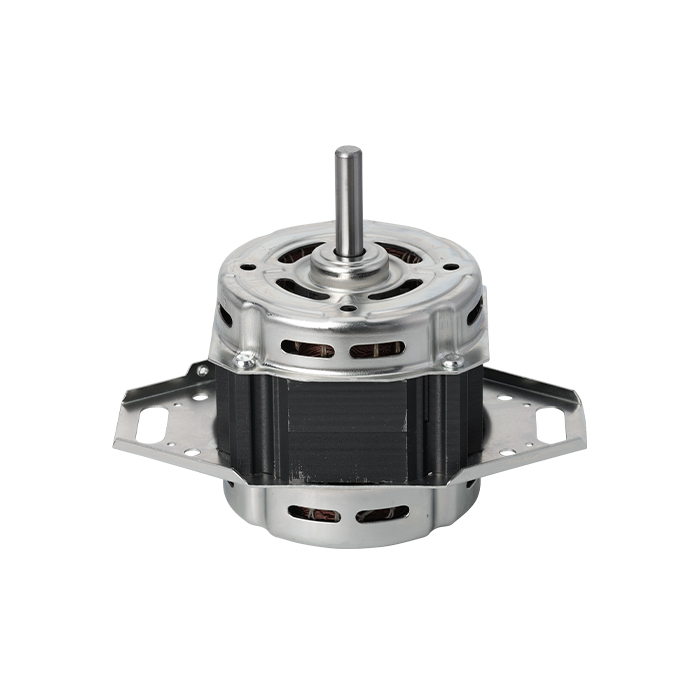

Model：AC Auto-motor
From a single enameled wire to a core, from injection molding, sheet metal stamping to motor assembly, from testing to complete machine delivery, Nanyang Motor has established a full industrial chain closed loop for local independent supply.
Single-phase induction motors are the most common type of AC motors,widely used in home appliances.
Key Features:
Operates on single-phase AC supply.
Simple construction,reliable, and cost-effective
Stack height from 16mm to 60mm
Applications: automatic washing machine
| Technical parameter | ||
|---|---|---|
| NO | ITEM | AC Auto-motor |
| 1 | Voltage | 110V、170V、220V、230V、240V、220—240V |
| 2 | Rated Frequency | 50Hz、60Hz、50/60Hz |
| 3 | Rated Power | 25~250W |
| 4 | Winding | Aluminium、Copper |
| 5 | Insulation Class |
ClassF、ClassB |
| 6 | Number Poles |
4P、6P |
| 7 | Character of Service | S1、S2/15min |
| 8 | Noise | ≤50dB |
| 9 | Ambient Temperature | -15℃—40℃ |
| 10 | Altitude | ≤1000m |
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
