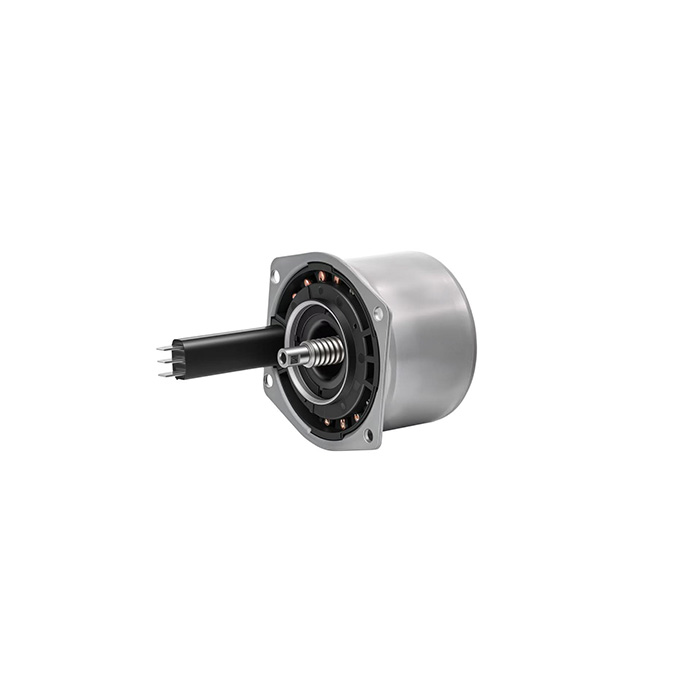

The One-box brake motor is the driving motor of the One-box braking system. It usually adopts a permanent magnet synchronous motor, and its rotating shaft is a hollow rotating shaft to connect the lead screw and the lead screw nut. After receiving the electrical signal, it is converted into a braking action, driving the hydraulic pump to generate hydraulic braking force and transmitting it to each wheel sub-pump to achieve emergency braking.
| Technical parameter | ||
|---|---|---|
| NO | ITEM | Brake motor |
| 1 | Rated Voltage | 10.5V |
| 2 | Maximum Power | 800W |
| 3 | Rated Current | 100Apk |
| 4 | Rated Torque | ≥3.64N.m |
| 5 | Slot-Pole Combination | 12S/8P |
| 6 | Cogging Torque | ＜60mN.m |
| 7 | 0perating Temperature | -40℃-125℃ |
| 8 | Weight | ＜1900g |
