DD Motor
Model：DD

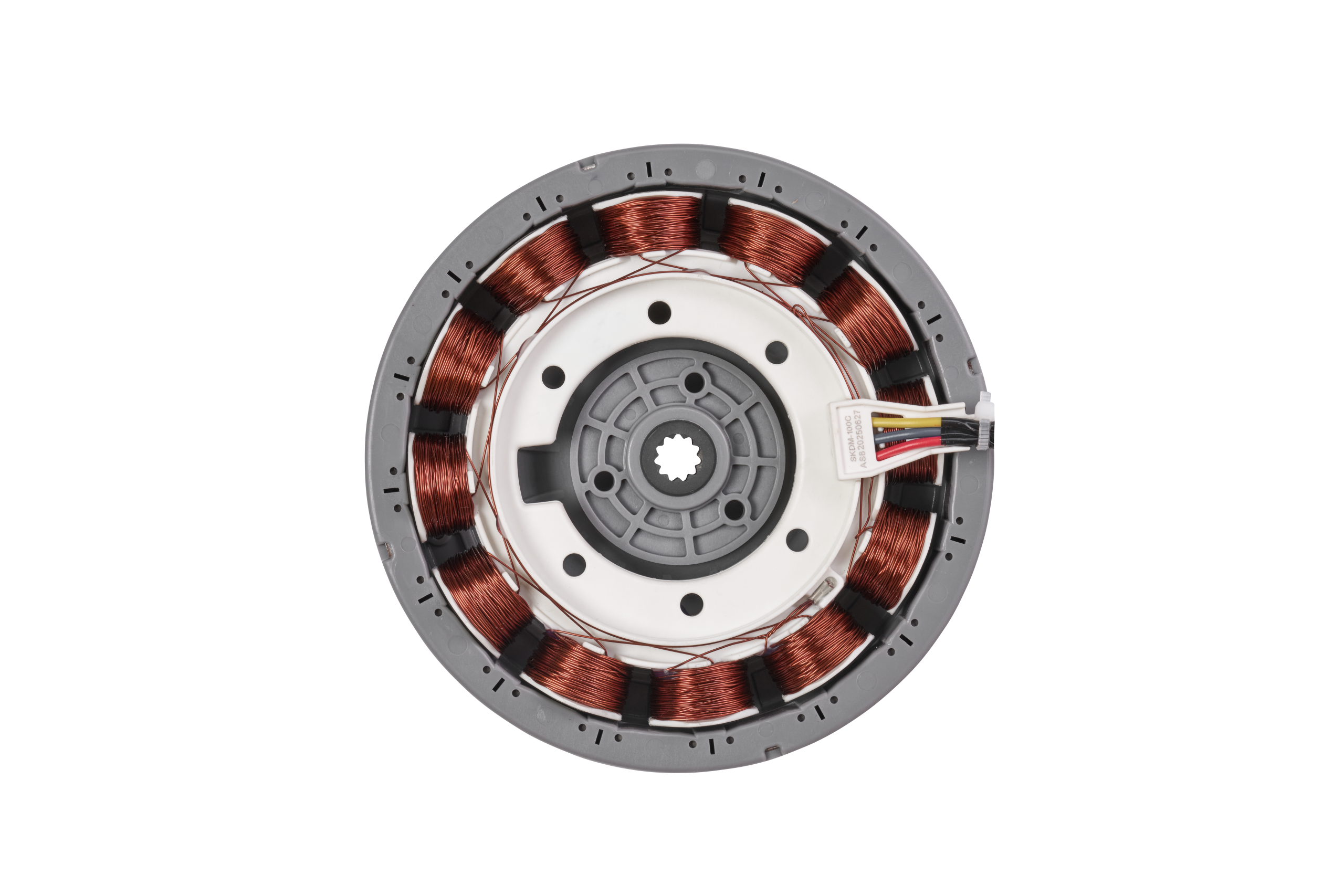

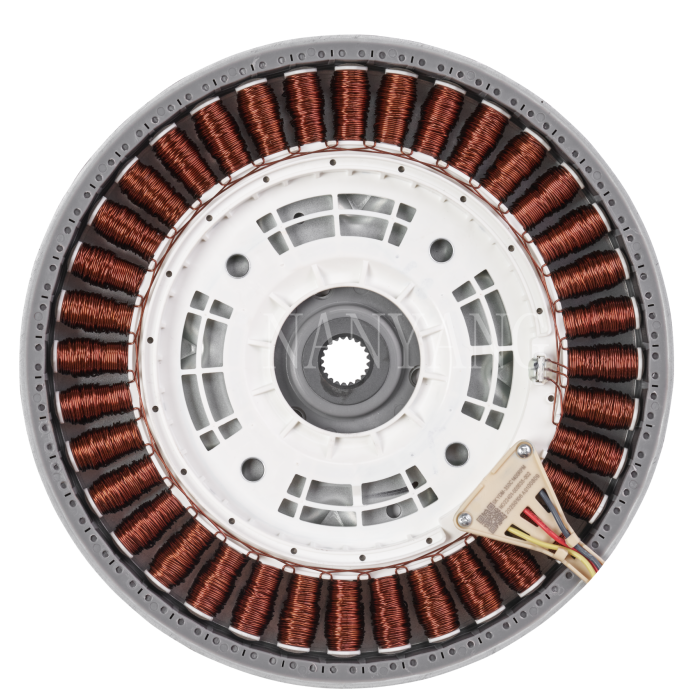

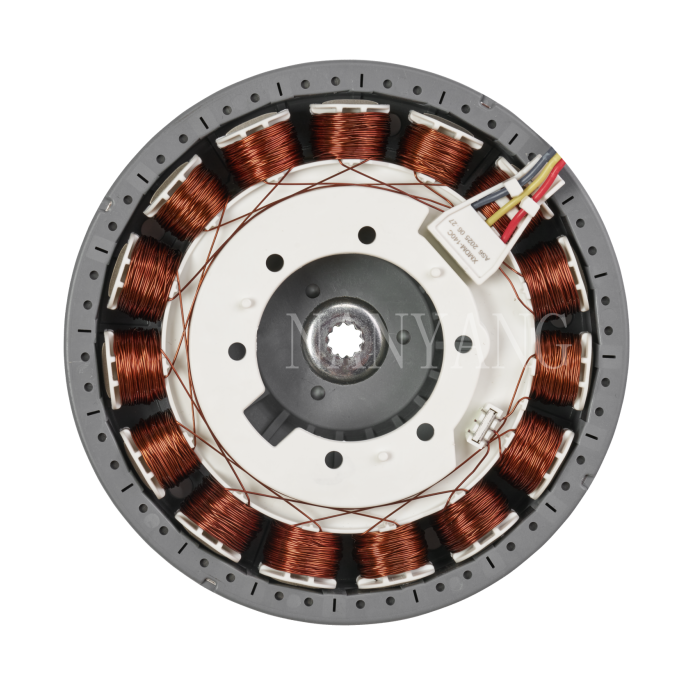

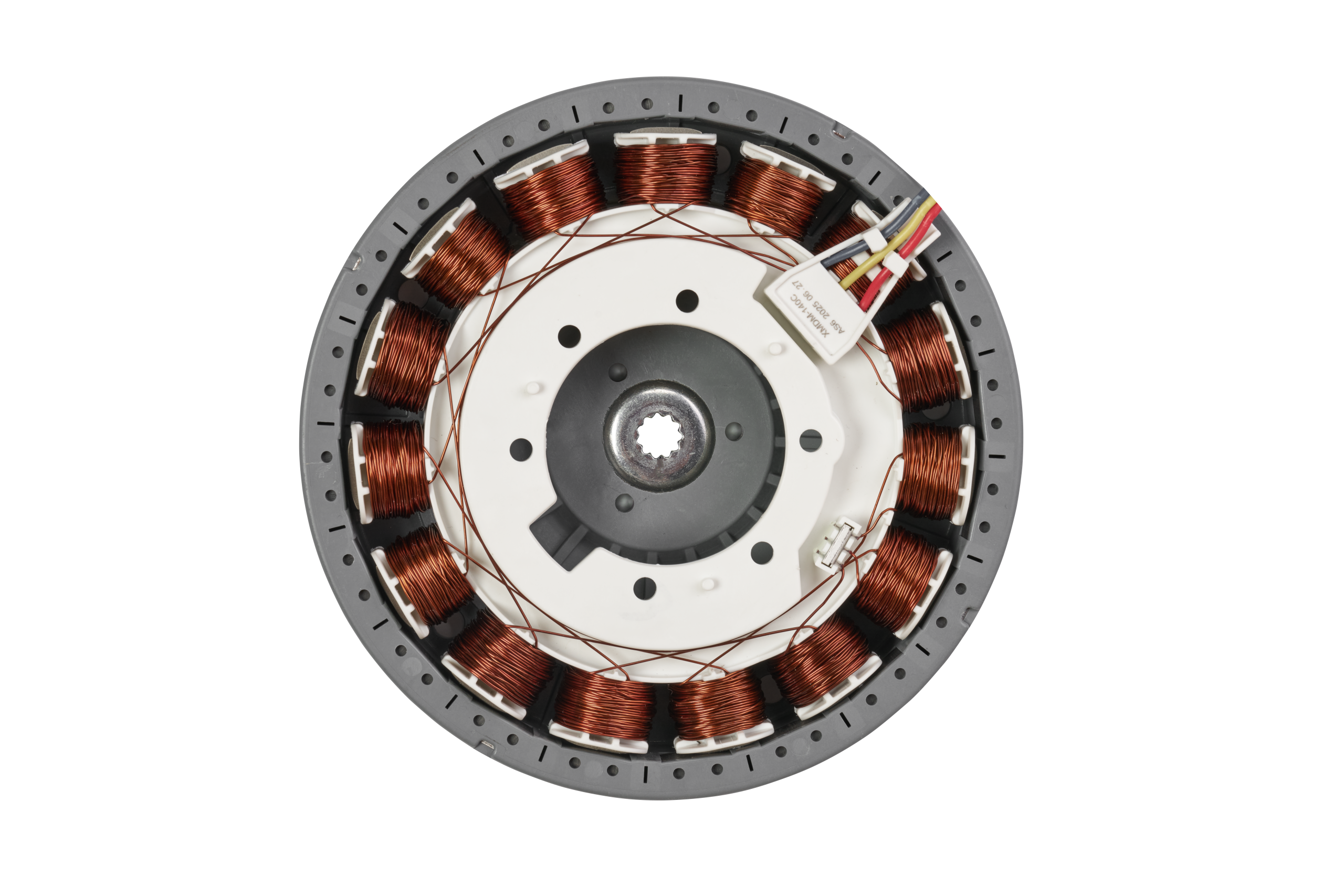

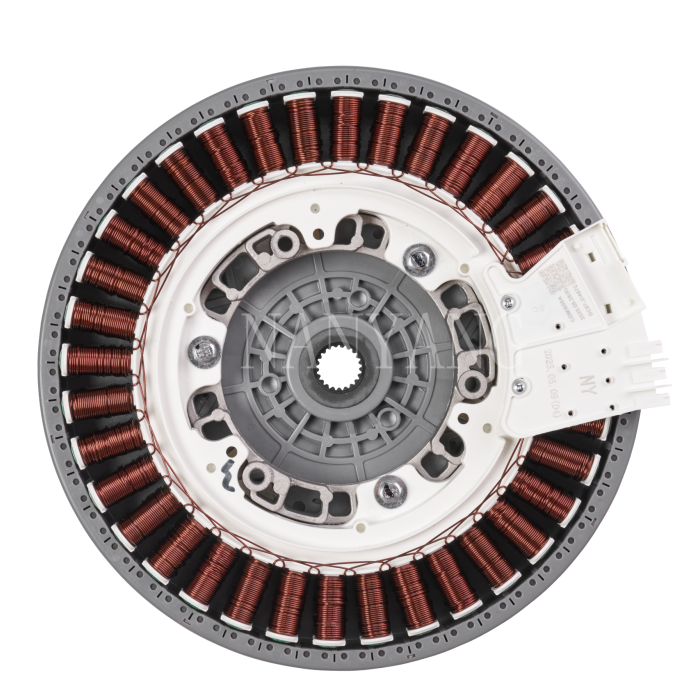

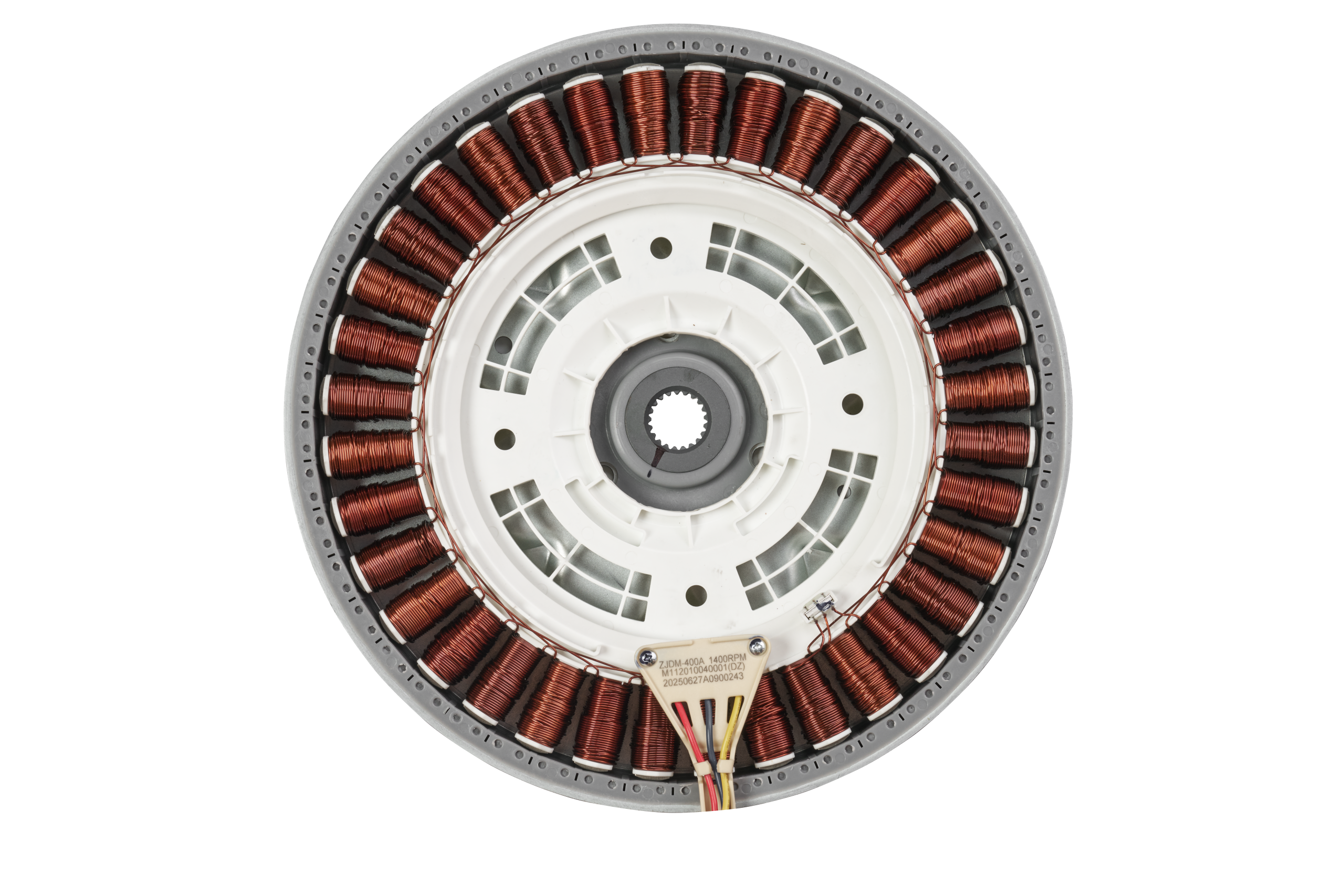

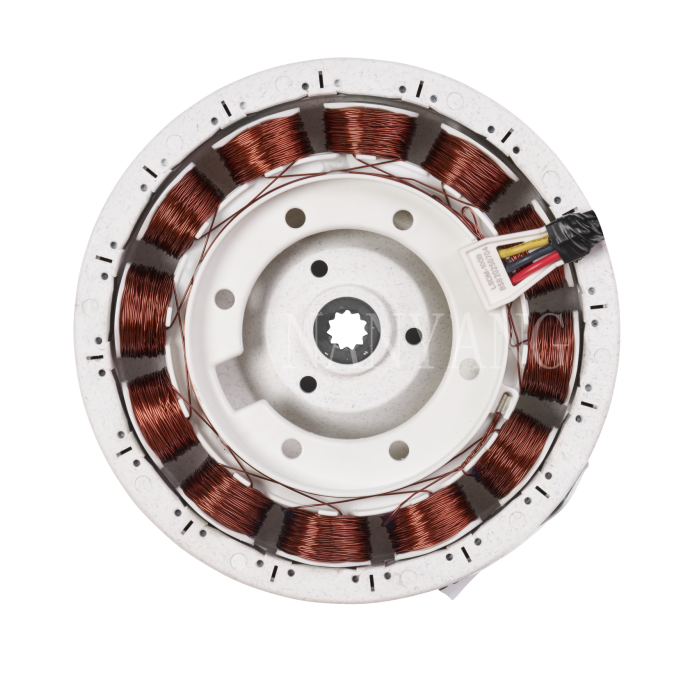

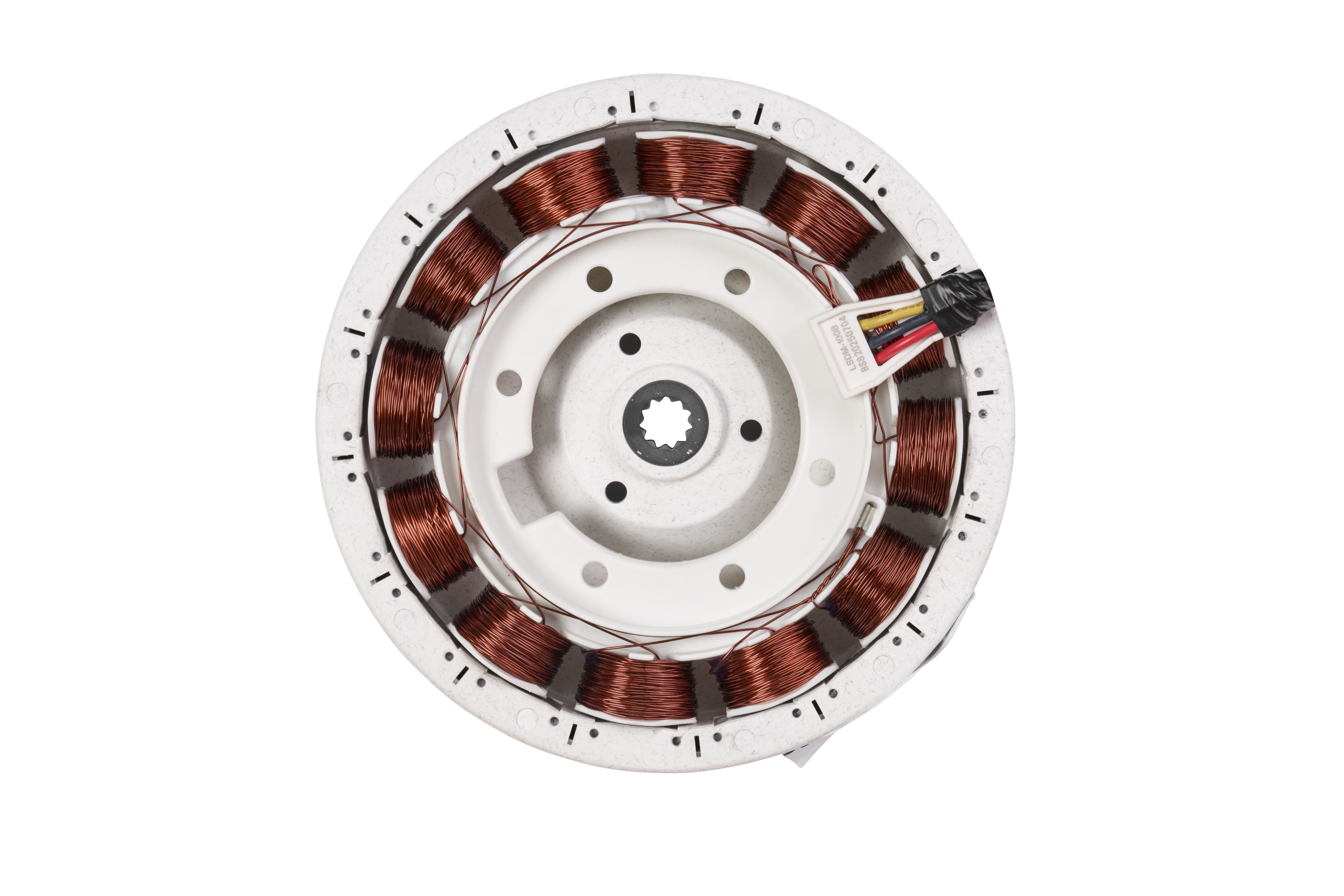

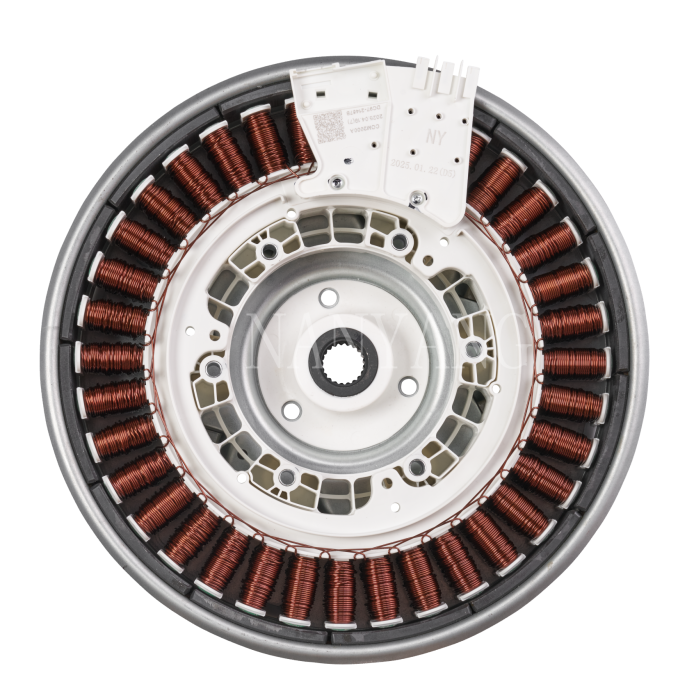

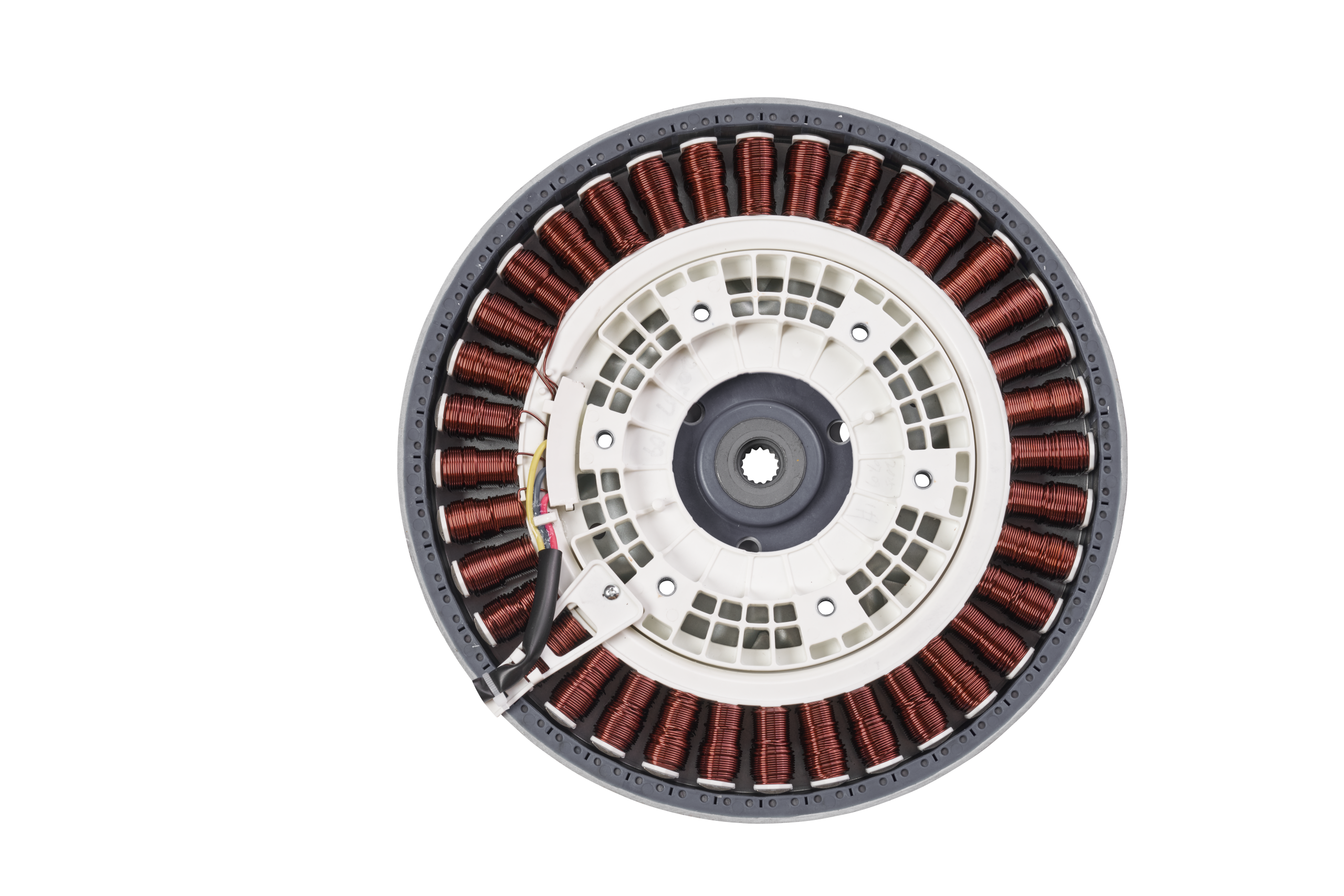

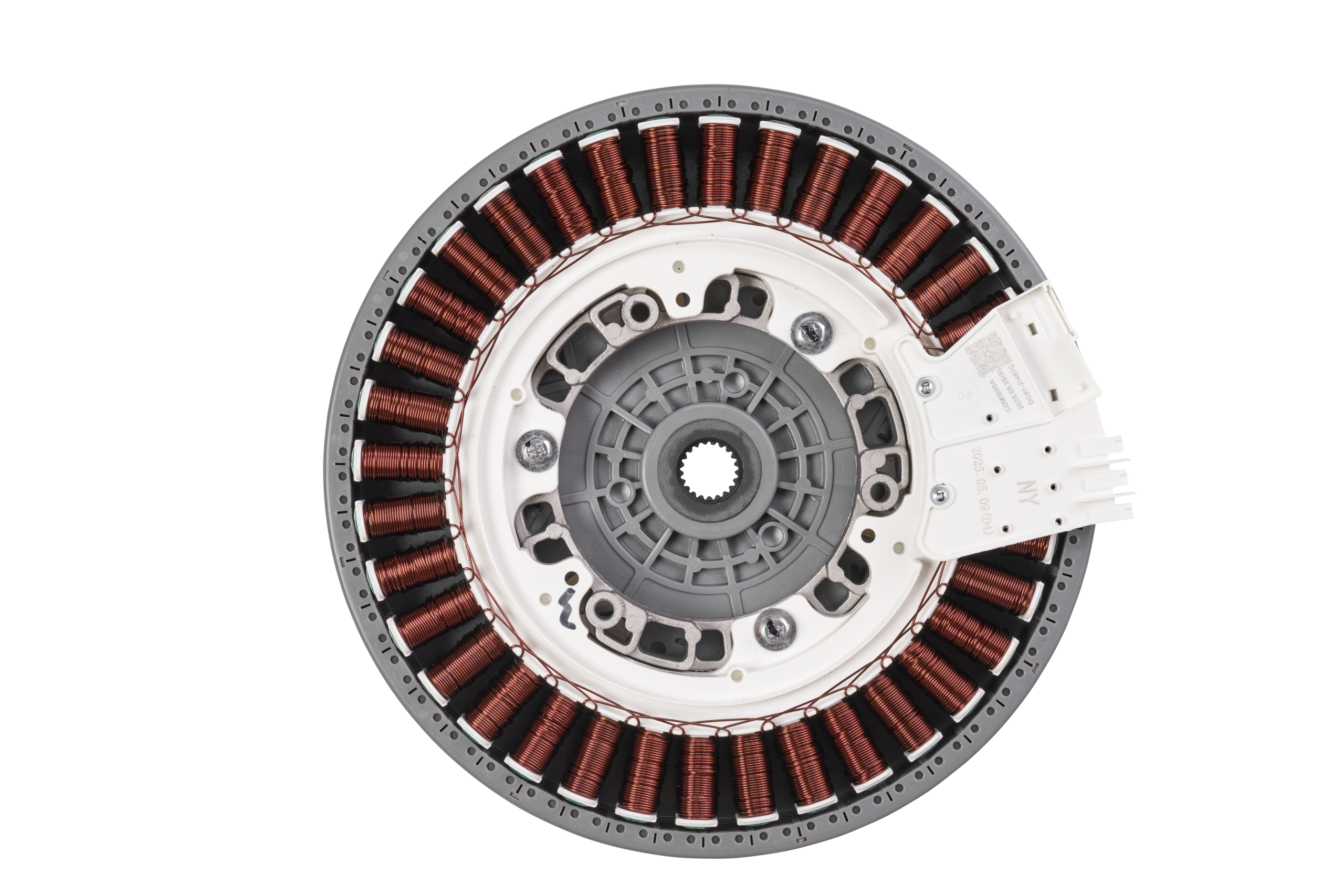

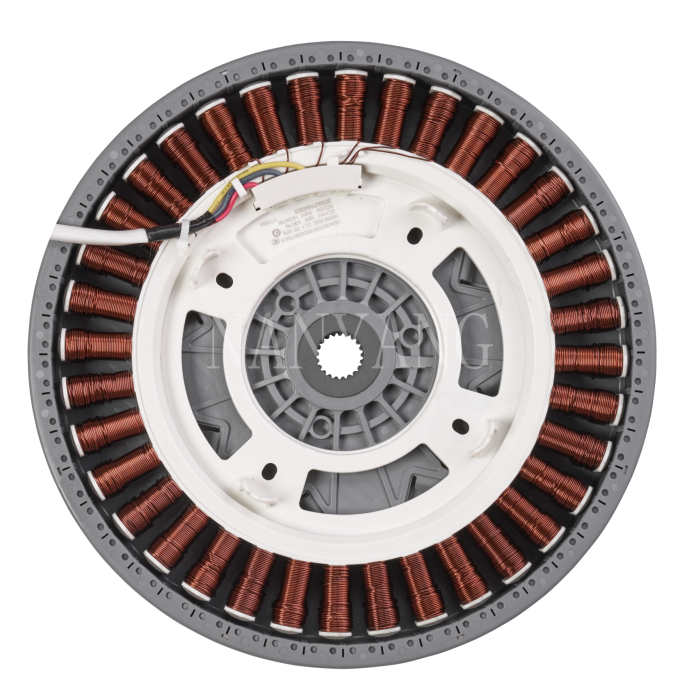

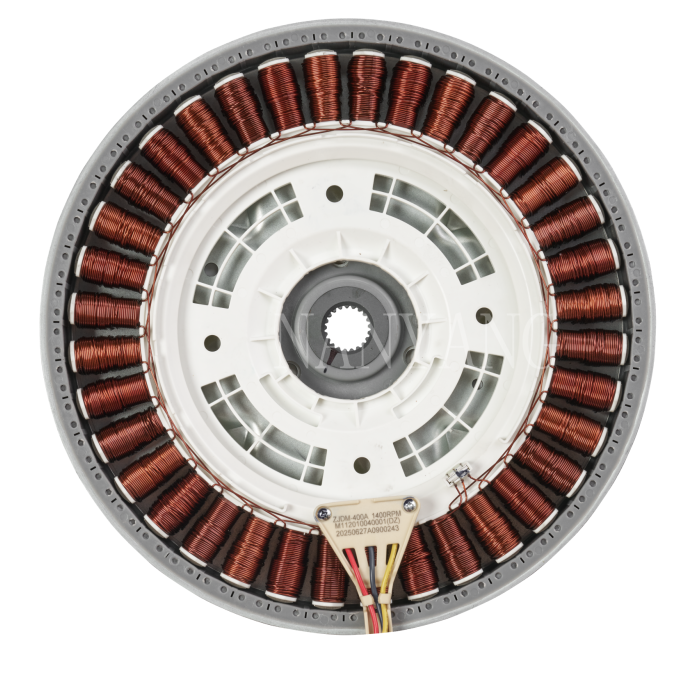

Nanyang's Direct Drive Motor is an outer rotor type BLDC motor, connected to a washing machine tub directly without any belt or pulley. This simplified structure helps running washing machine quiet and reliable.
Contact
Us
Explore your home appliances motor library
Product Introduction
Strong power: The output power of DD motor is much higher than that of motors of the same size. This is mainly due to the larger number of electromagnetic coils and larger number of coil turns in its internal design, which enhances the magnetic field and torque.
High efficiency and energy saving: The DD motor adopts an iron-core rotor design, which effectively reduces the hysteresis loss of the iron core, making the motor’s output power more abundant. In addition, it also uses energy-saving technologies such as high magnetic permeability materials and optimized cooling systems, allowing the motor to obtain higher energy utilization during operation.
High precision: The DD motor adopts direct drive technology, which can achieve very precise motion control and position control.
Product Parameters
| Technical parameter | |||
|---|---|---|---|
| NO | ITEM | DD Motor | |
| 1 | Driving mode | Horizontal direct drive | |
| 2 | Voltage | 310VDC | |
| 3 | Power | 0~3/4 HP | |
| 4 | Stator solts | 36S | |
| 5 | Rotor poles | Rotor poles8P | |
| 6 | Motor Efficiency | Wash | ≥40% |
| Spin | ≥75% | ||
| 7 | Torque | Wash | 15.0~50.0N.m |
| Spin | 2.5~4.5N.m | ||
| 8 | Speed range | 0~1600rpm | |
| 9 | Structure | Iron/PP | |
| 10 | Application | 8~25kg | |
| 11 | Bearing | 6202/6201 | |
| 12 | Max external dimension | 290.2/297mm | |
Technical Illustration
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
