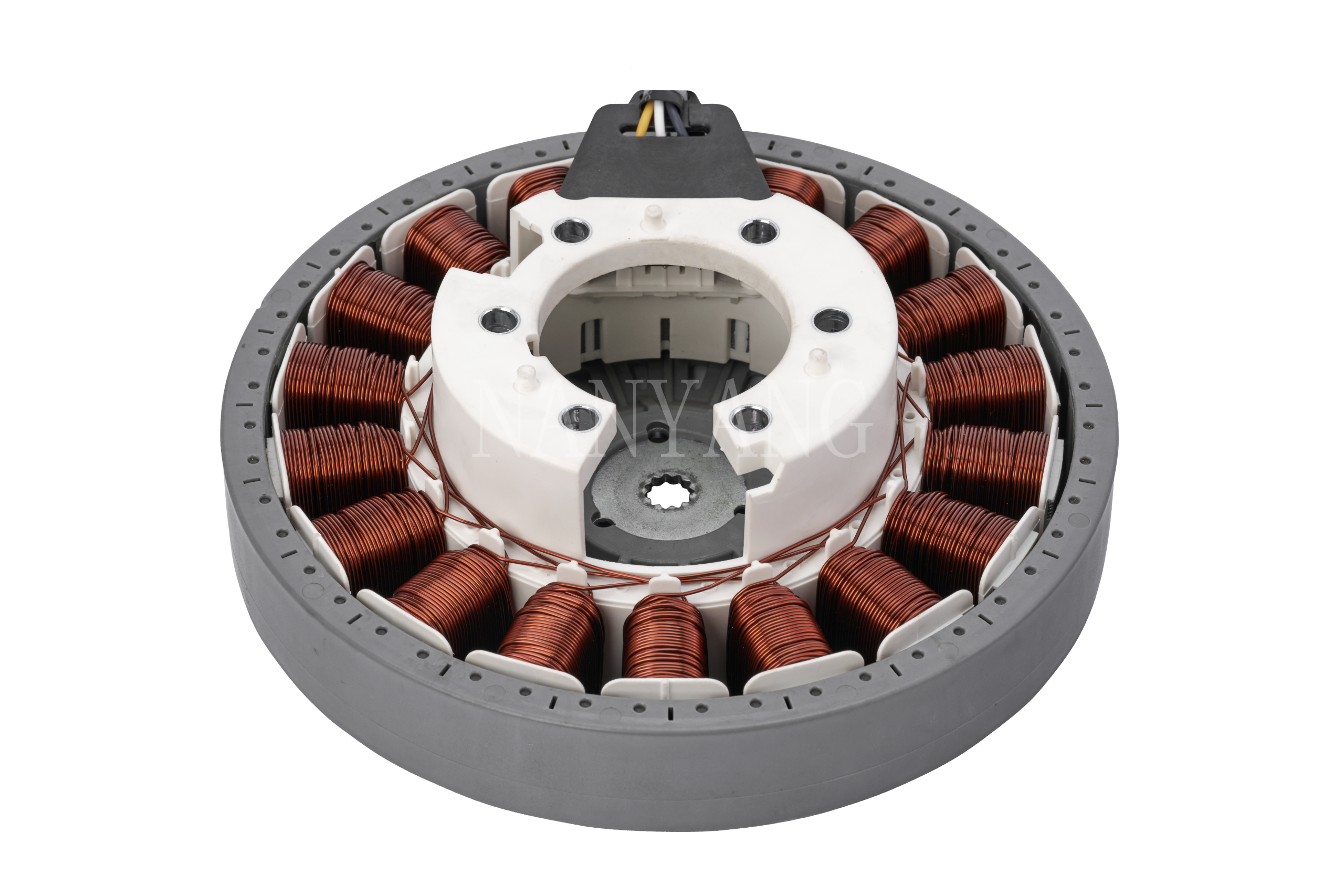

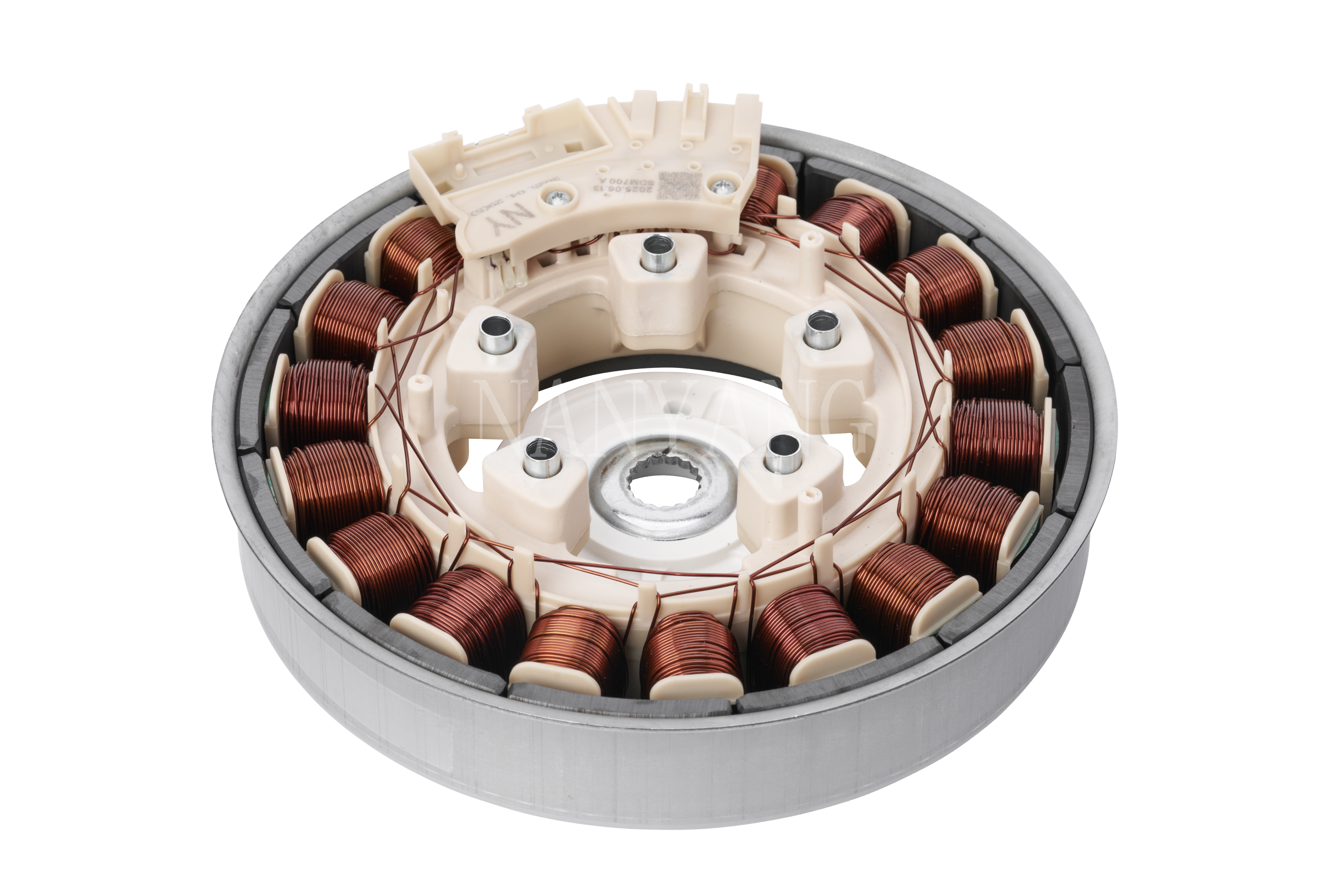

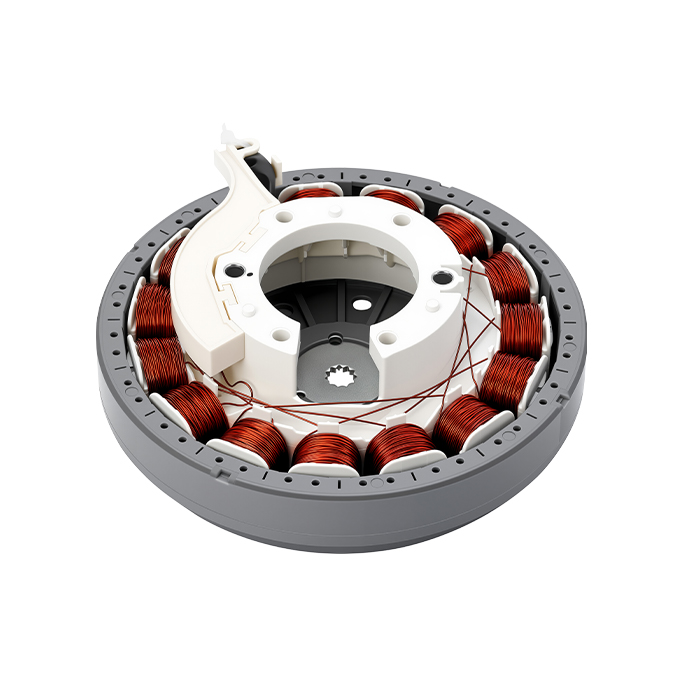

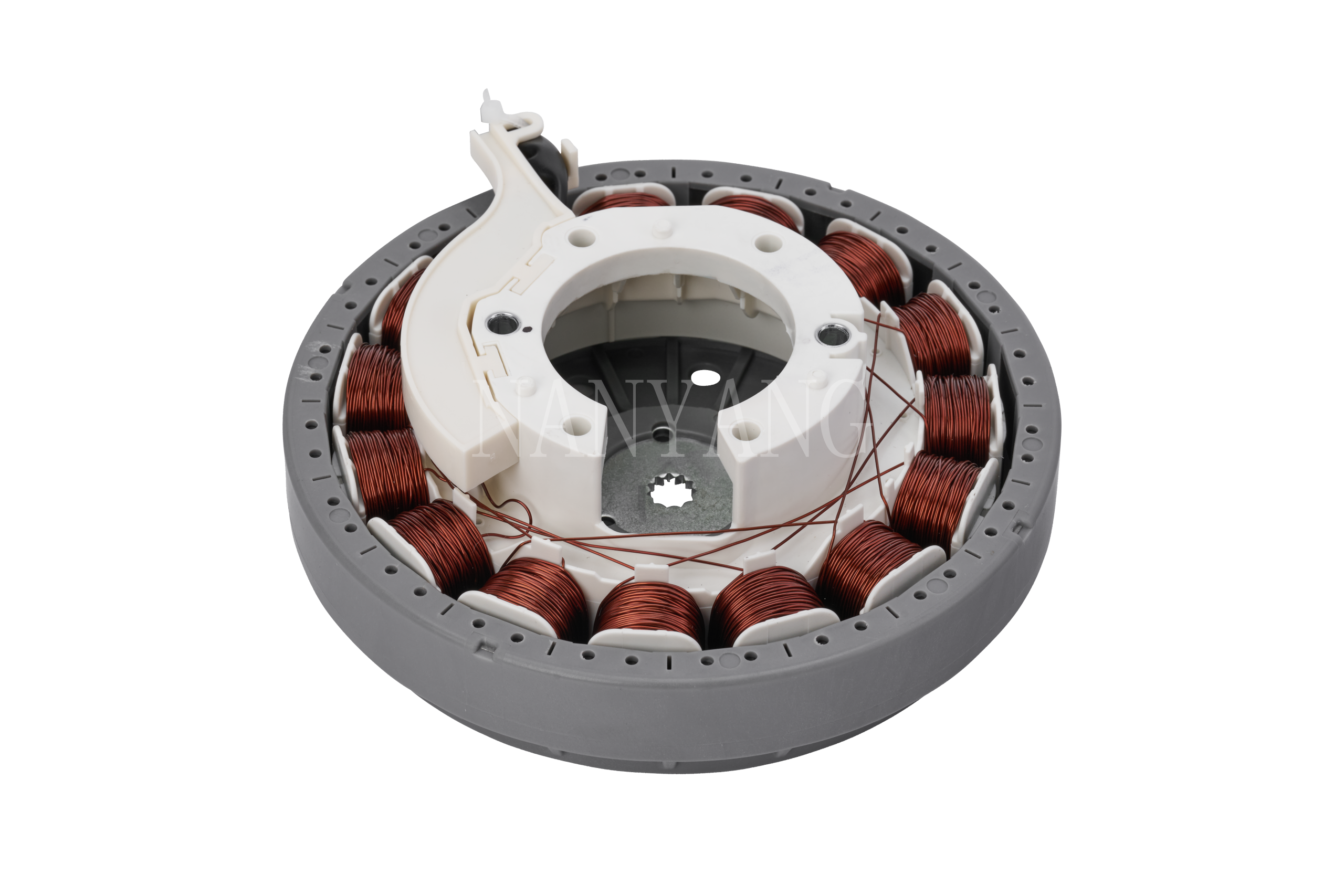

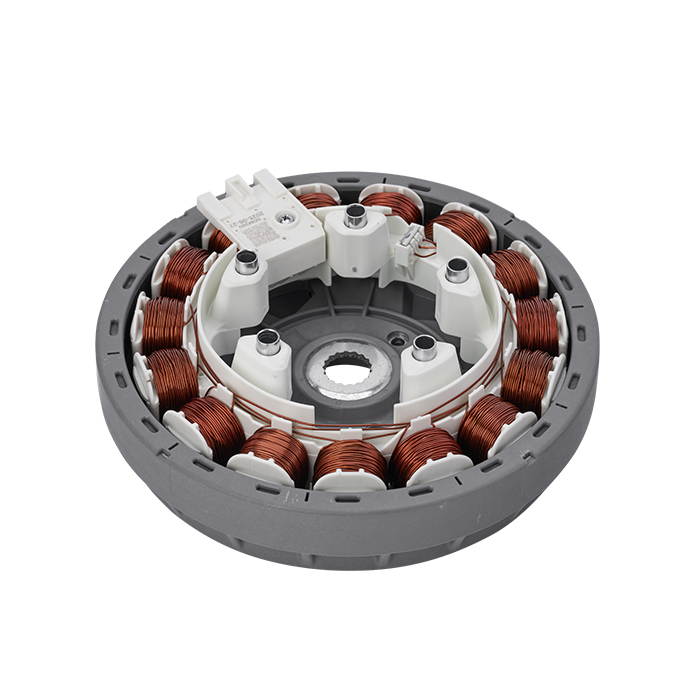

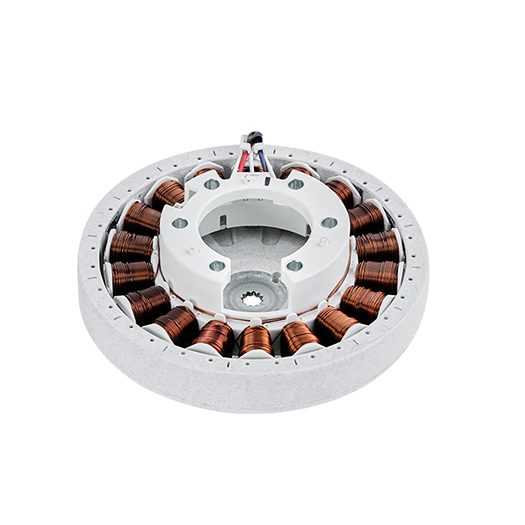

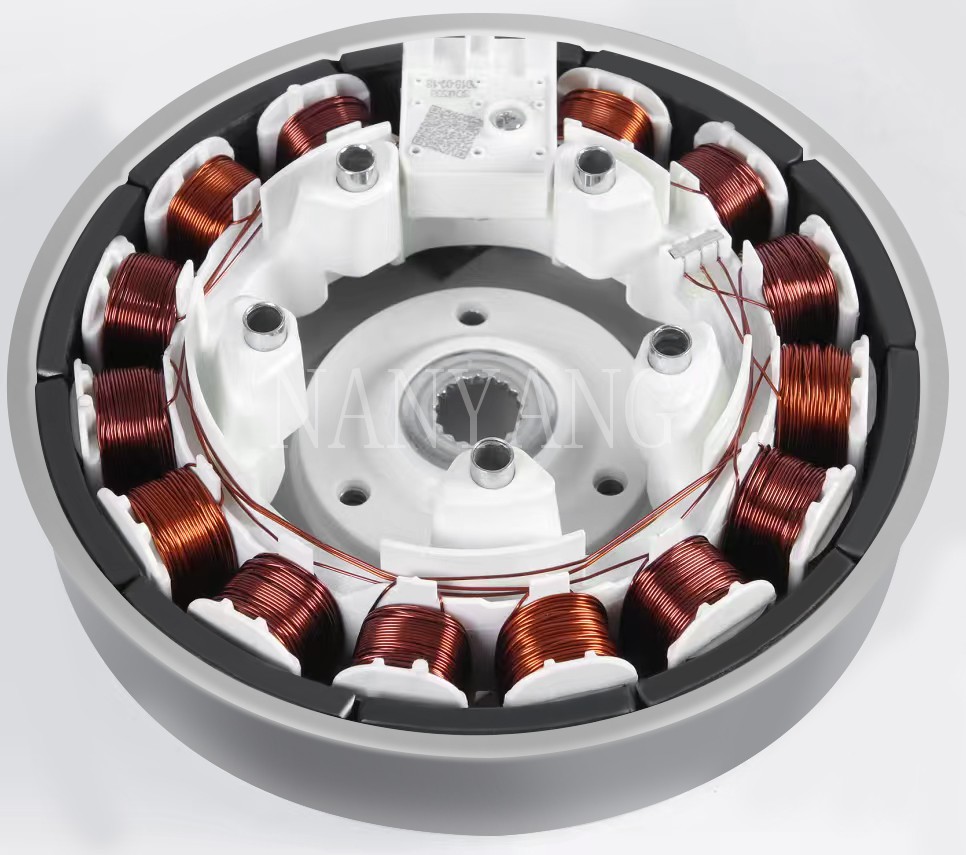

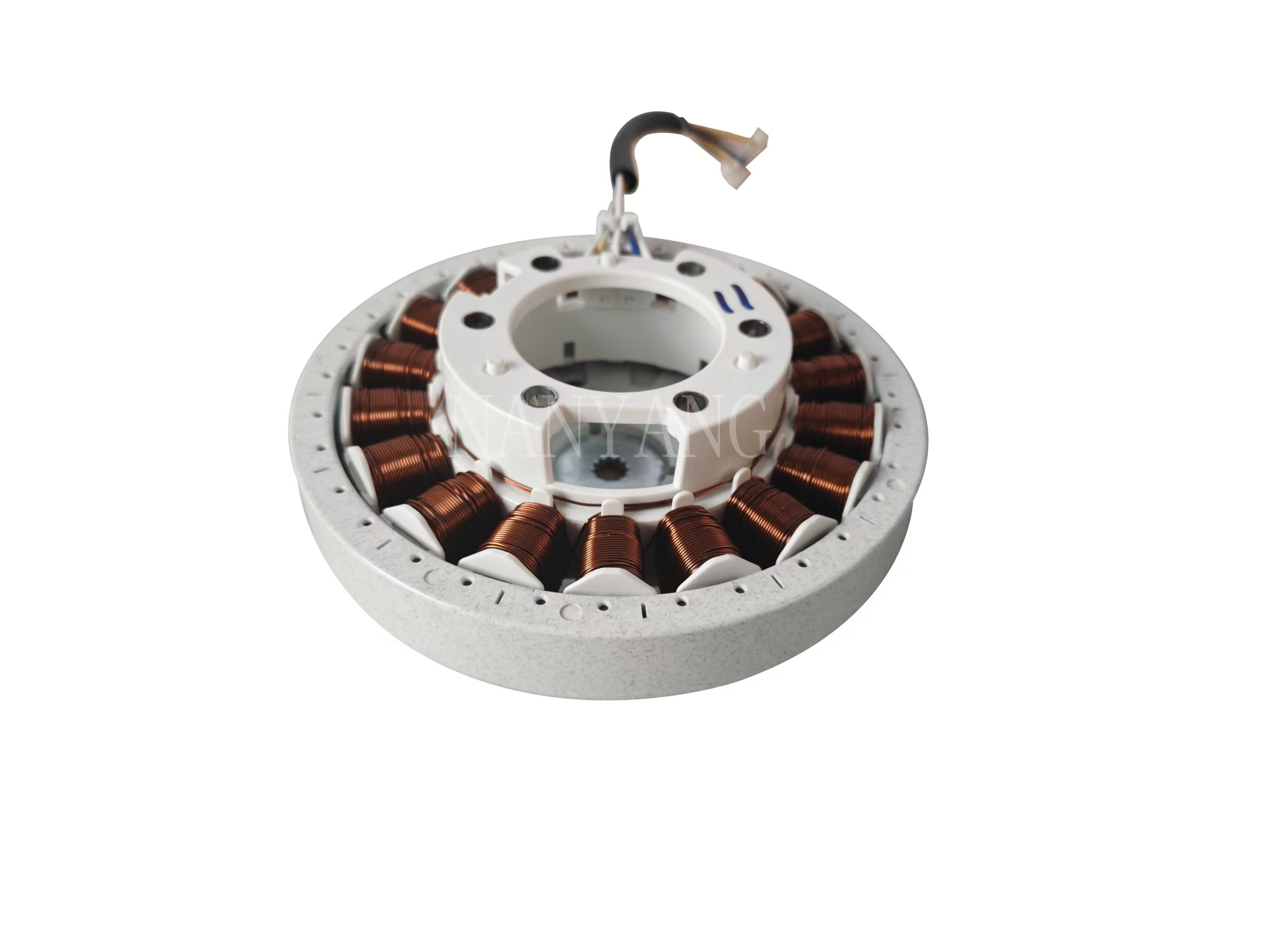

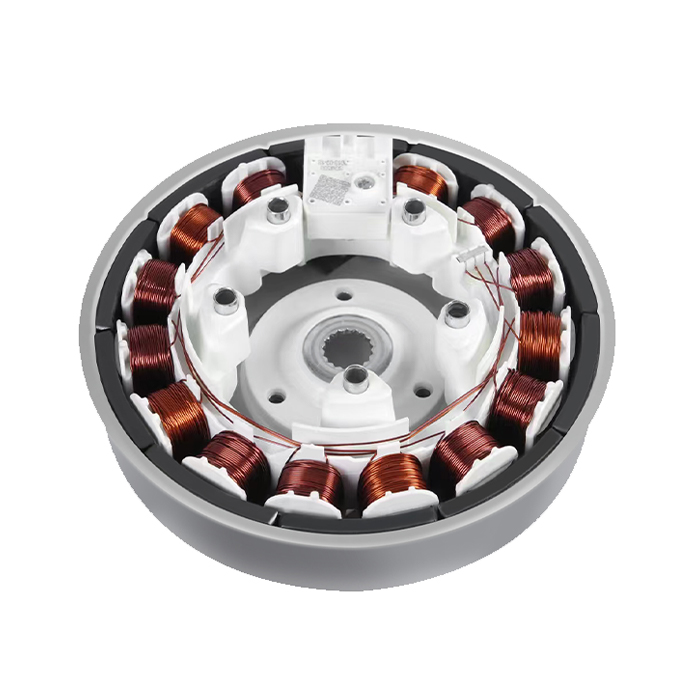

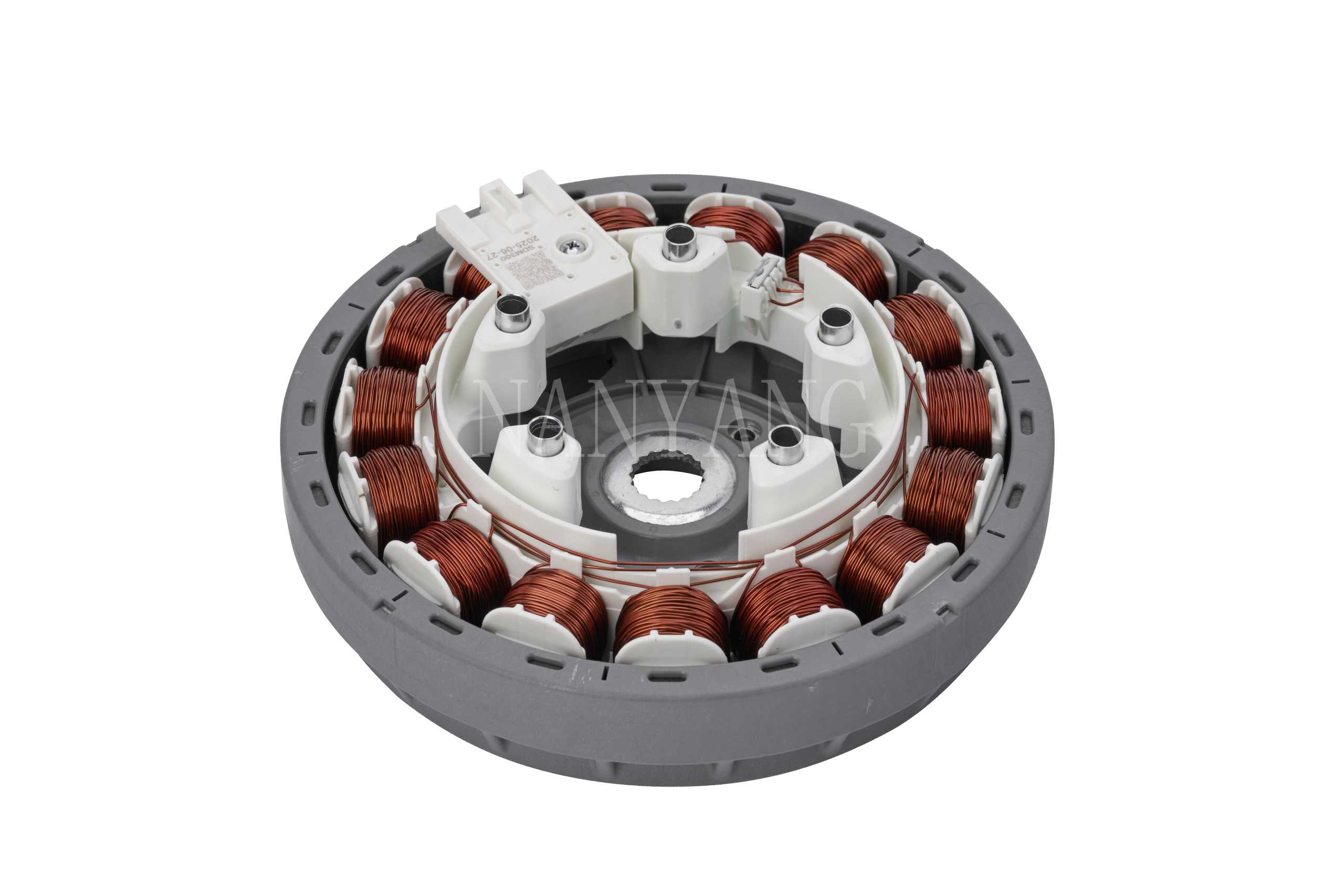

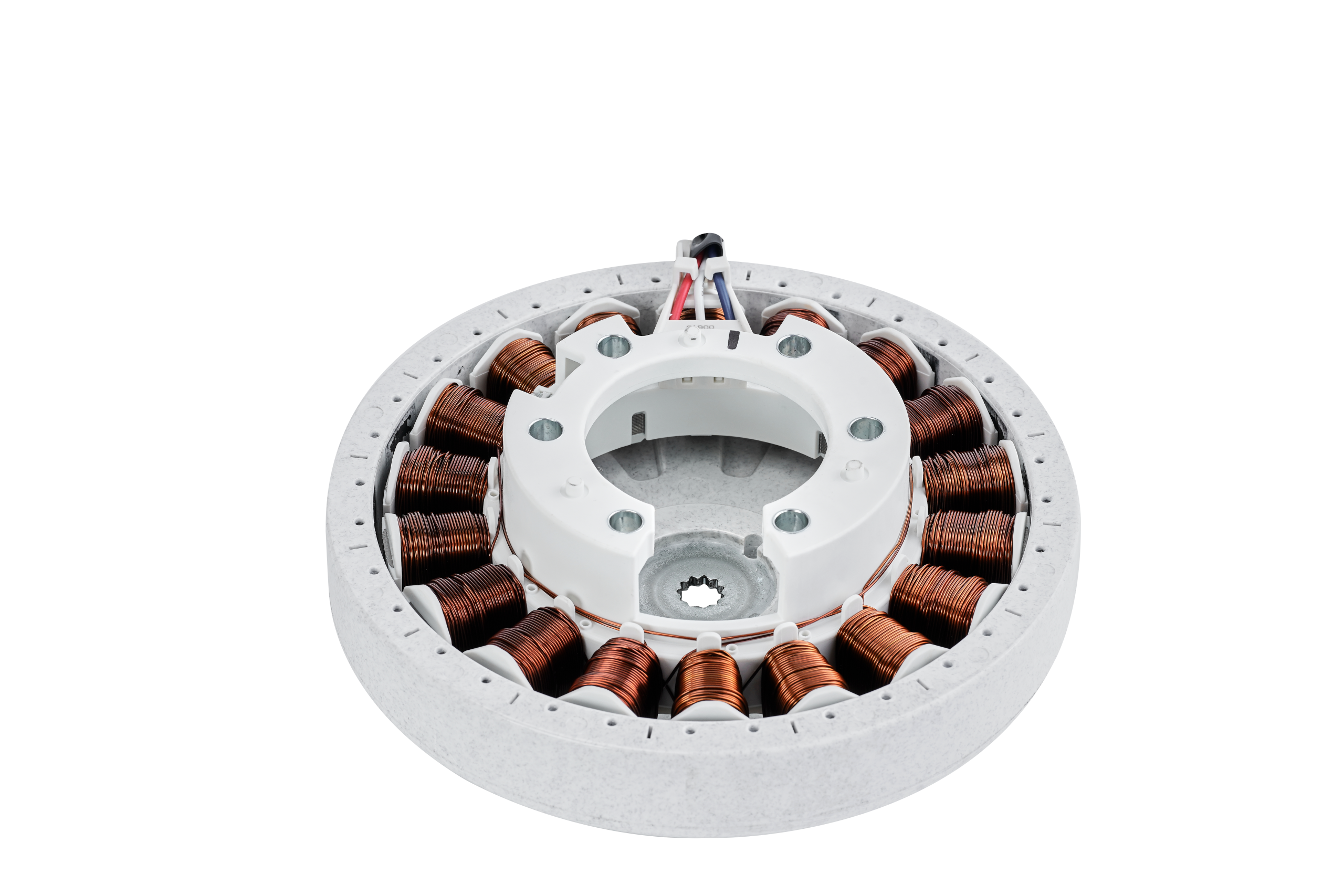

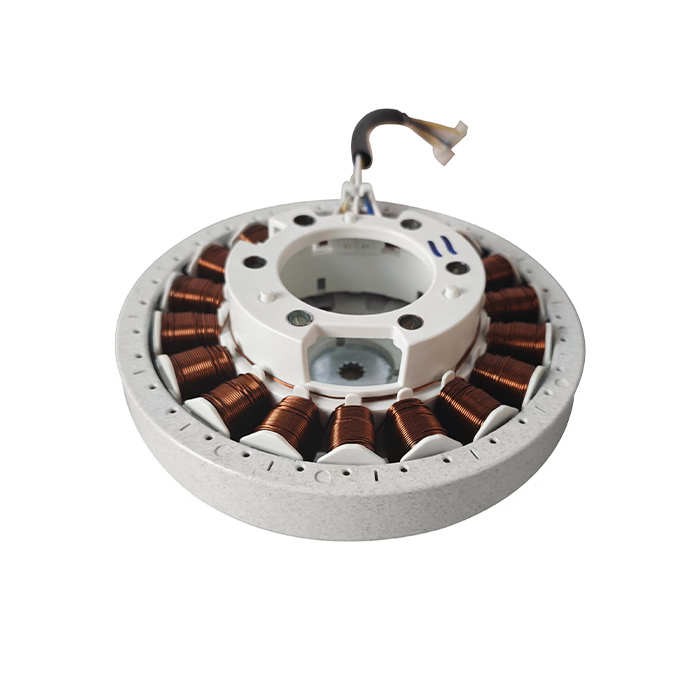

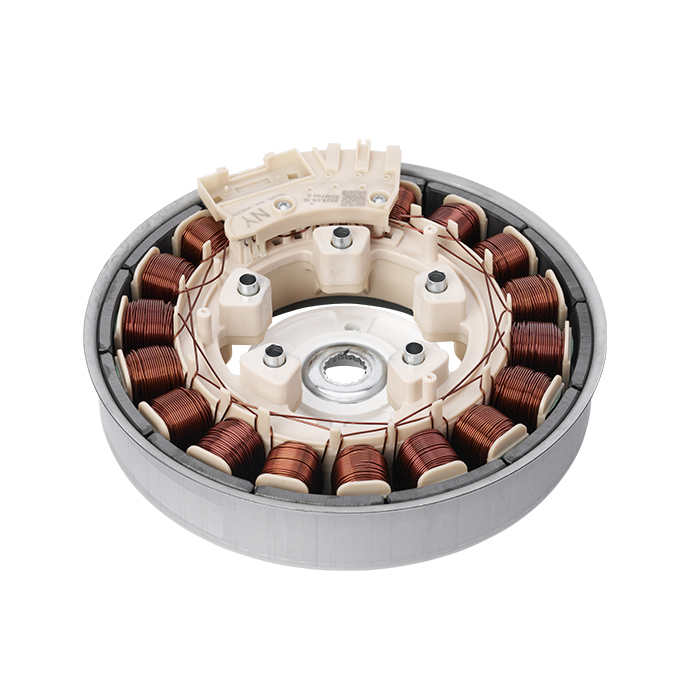

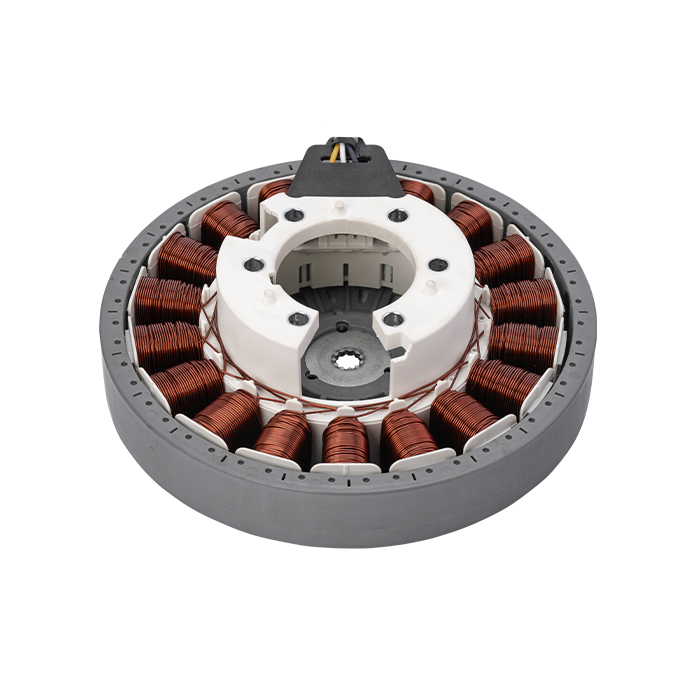

DDM Motor
Model：DDM
Less vibration and lower noise.
The most optimized electromagnetic design.
Higher motor efficiency (above 80%) for less energy, water and electricity.
Contact
Us
Product Introduction
Nanyang’s Top Loading Washing Machine DDM Motor is a state-of-the-art product that comes with a range of features and benefits.It is an ideal product who are looking for a reliable and high-performance washing machine.
1. High-Efficiency Motor
The Top Loading Washing Machine DDM Motor is designed with a high-efficiency motor that is capable of delivering superior performance. This motor is energy-efficient and helps to reduce power consumption.
2. Low Noise Operation
The Top Loading Washing Machine DDM Motor is designed to operate at a low noise level.
3. Long-Lasting Durability
The Top Loading Washing Machine DDM Motor is manufactured using high-quality materials, making it a durable product. This ensures that it lasts for a long time
4. Easy to Use
The Top Loading Washing Machine DDM Motor is designed to be easy to use, making it an ideal product for people of all ages.
5. High Capacity
The Top Loading Washing Machine DDM Motor is designed with a high capacity, enabling it to handle large loads of laundry. This makes it an ideal product for households with large families or for commercial use in laundromats.
Product Parameters
| Technical parameter | |||
|---|---|---|---|
| NO | ITEM | DDM Motor | |
| 1 | Driving mode | Vertical direct drive | |
| 2 | Voltage | 310VDC | |
| 3 | Power | 0~3/5 HP | |
| 4 | Stator solts | 15S | |
| 5 | Rotor poles | 20P | |
| 6 | Motor Efficiency | Wash | ≥75% |
| Spin | ≥80% | ||
| 7 | Torque | Wash | 5.0~9.5N.m |
| Spin | 6.0N.m | ||
| 8 | Speed range | 0~1000rpm | |
| 9 | Structure | Iron/PP | |
| 10 | Application | 6~25kg | |
| 11 | Bearing | 6202/6201 | |
| 12 | Rotar mater | PP/Iron/BMC | |
| 13 | Max external dimension | 188/216.2mm | |
Nanyang advantages:
Nanyang has achieved in-house production of core motor components including
1) Enamelled wire including copper and aluminium
2) Stator & Rotot core
3) Injected molding (more than 130 injection molding machines)
4) Aluminum die casting
5) Sheet metal stamping
We established strategic alliances with leading steel groups – significantly optimizing our raw material costs while ensuring premium quality.
Technical Illustration
You can provide your product requirements to our sales team, and we will select or design the most suitable combination solution for you.
