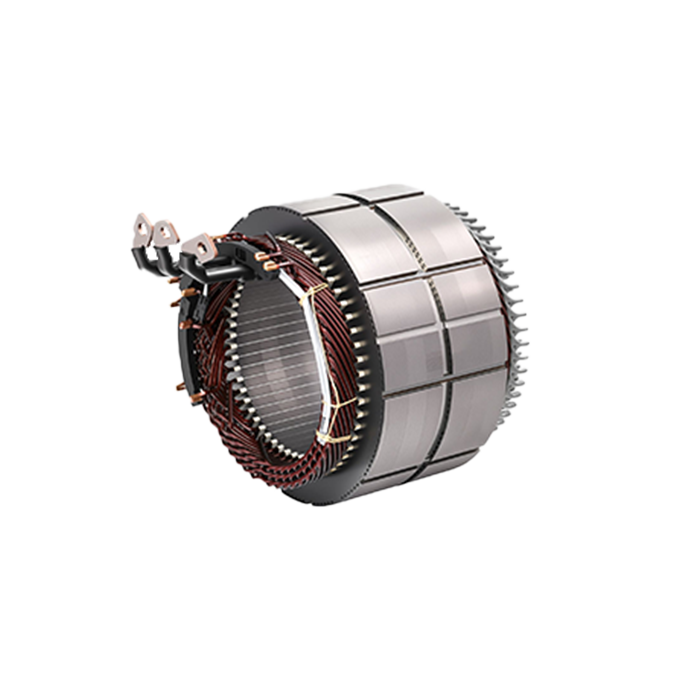

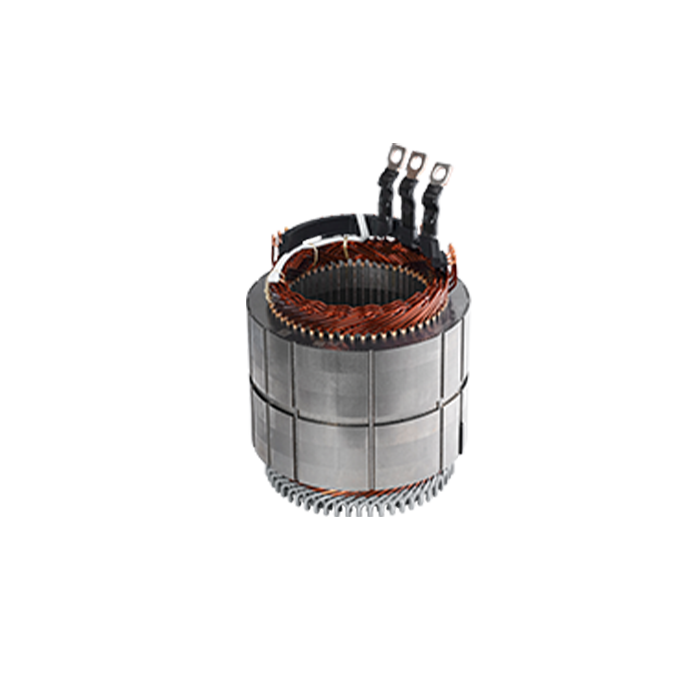

It is mainly applied to the drive motors of new energy electric vehicles, featuring high power density, high speed, high efficiency and energy saving, low noise, and a wide high-efficiency zone. Adopting the latest flat wire winding technology, advanced manufacturing processes and equipment, and a complete industrial chain, we provide fully competitive products in the market.
The Drive motor is permanent magnet synchronous structure，adopting the patented process of self-developed card flat wire winding, the production efficiency is increased by 30% and the cost is reduced by 20%.
Applied to the drive systems of new energy passenger vehicles and commercial vehicles, our products cover the household use market, ride-hailing vehicle market and logistics vehicle market comprehensively.

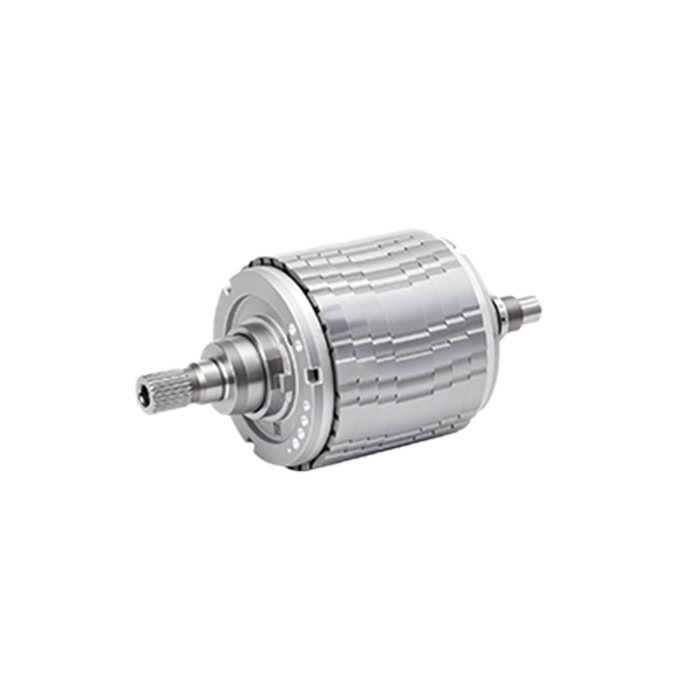

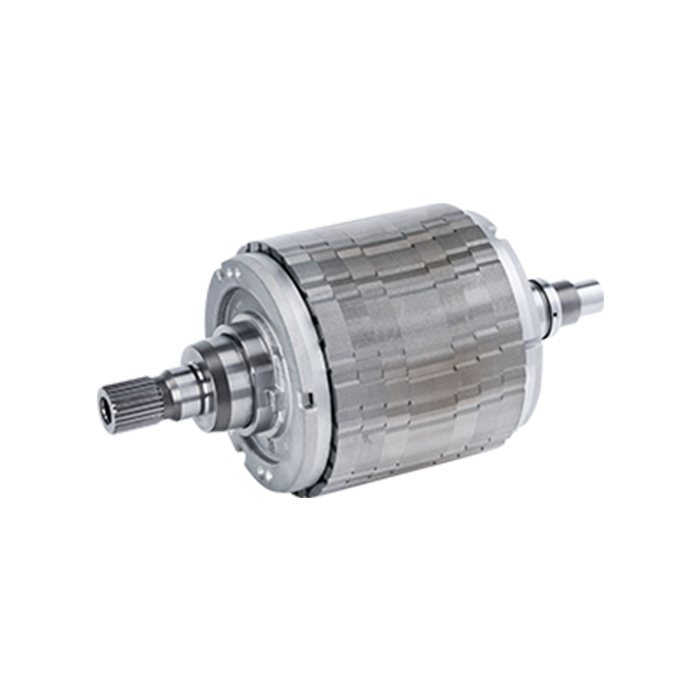

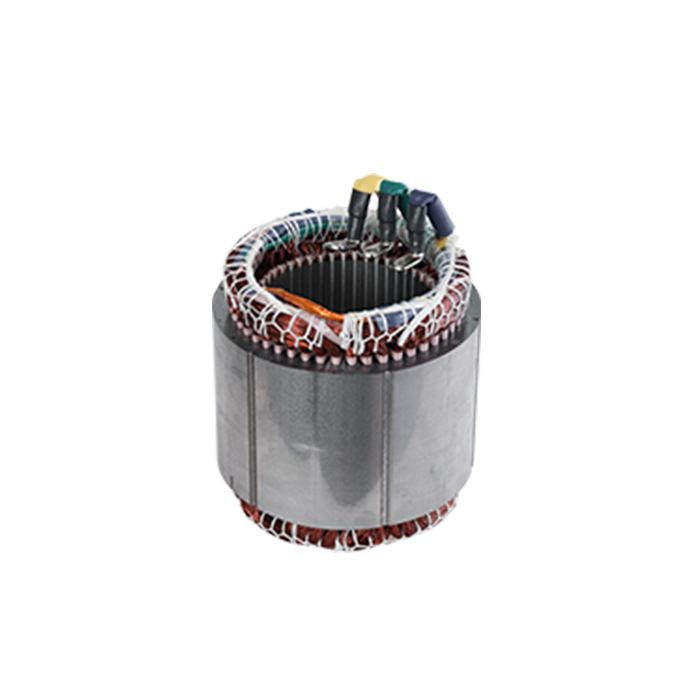

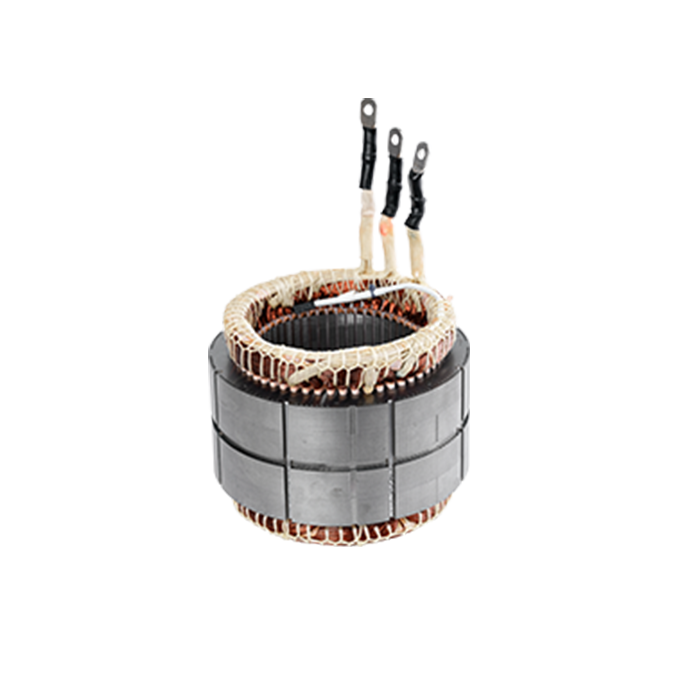

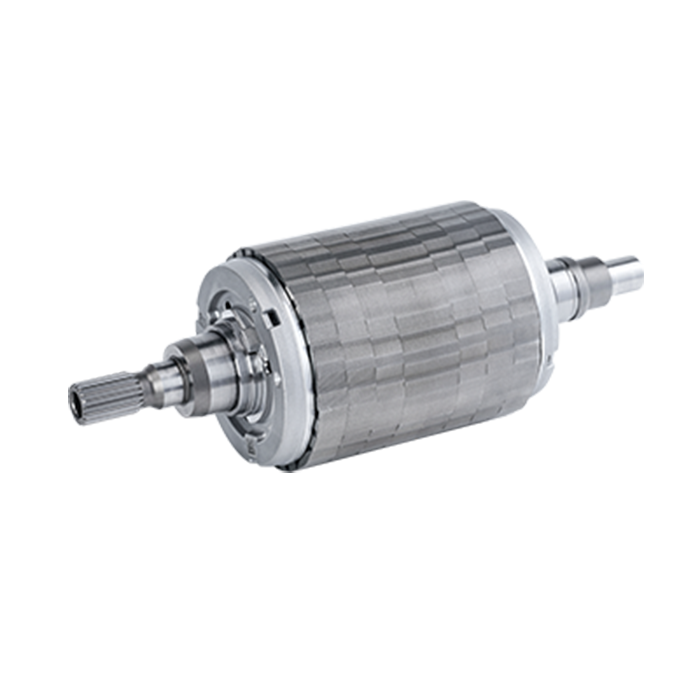

Self-manufactured components: Stator core, enameled wire, wiring terminal, rotor core, rotor end plate, pressure ring, BUSBAR injection molded part.
| Technical parameter | ||
|---|---|---|
| NO |
ITEM |
Drive motor |
| 1 | Product Platform |
180/220/240/290 |
| 2 | Voltage Range |
300～800VDC |
| 3 | Pole Number |
6P/8P |
| 4 | Cooling Method | Water Cooling/0il Cooling |
| 5 | Peak Power |
55～250kW |
| 6 | Peak Torgue |
155～400N·m |
| 7 | Maximum Speed |
20000rpm |
| 8 | Insulation Class |
H |
| 9 | Maximum Efficiency |
≥97% |
