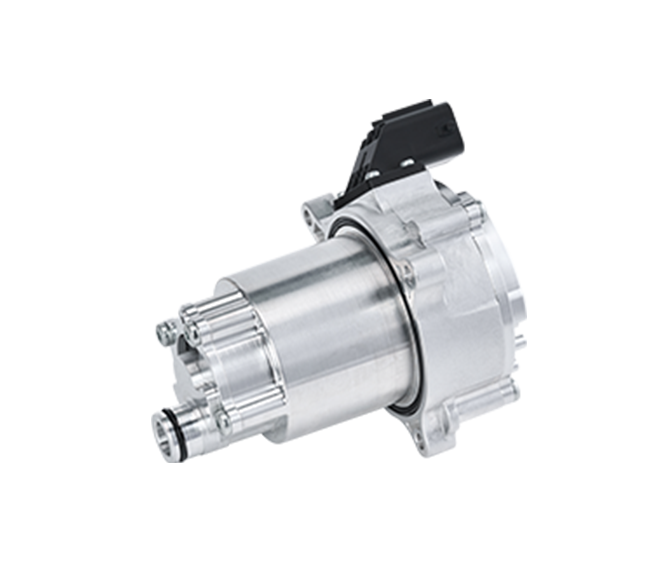

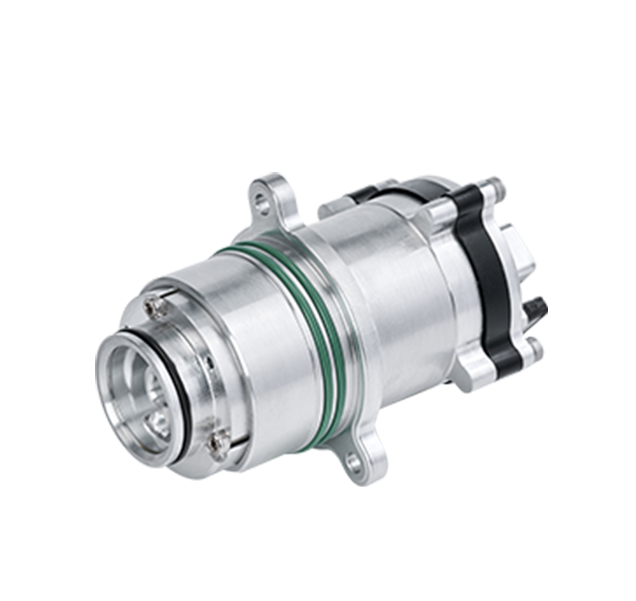

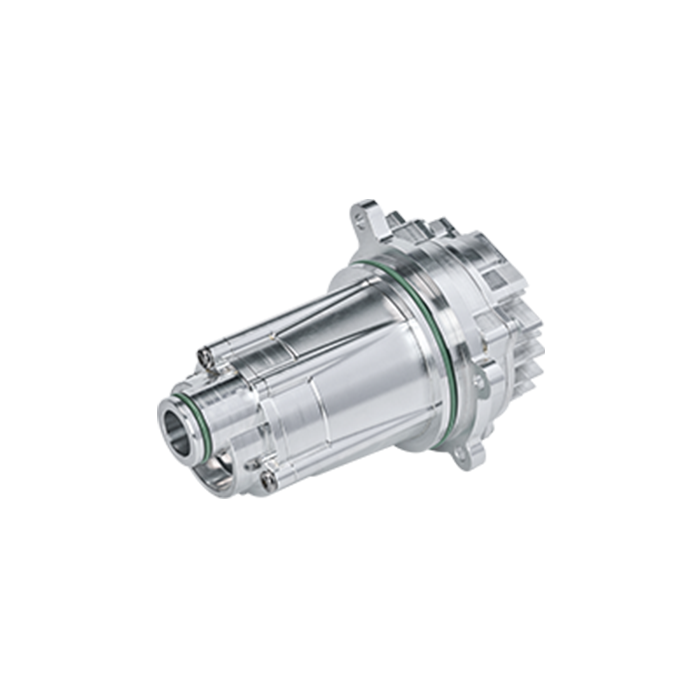

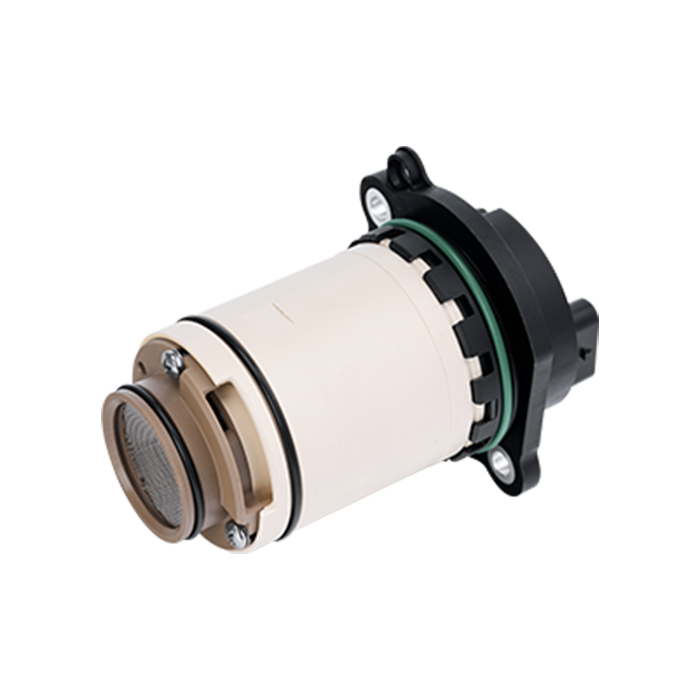

The electric oil pump is mainly used in the oil-cooled electric drive assembly, and is installed in the housing of the electric drive reducer or the integrated module for electric drive thermal management. The inlet of the oil pump needs to be immersed in the oil sump. After the oil pump operates, the transmission oil will form a circulating oil circuit in the electric drive assembly, thereby achieving the functions of cooling the motor, lubricating the bearings and gears.
The electric oil pump is mainly used in the oil-cooled electric drive assembly, and is installed in the housing of the electric drive reducer or the integrated module for electric drive thermal management. The inlet of the oil pump needs to be immersed in the oil sump. After the oil pump operates, the transmission oil will form a circulating oil circuit in the electric drive assembly, thereby achieving the functions of cooling the motor, lubricating the bearings and gears.
| Technical parameter | ||
|---|---|---|
| NO | ITEM | Electronic Oil Pump |
| 1 | Maximum Flow Rate | 12L/min |
| 2 | Rated Voltage | 12V |
| 3 | Voltage Range | 9V-16V |
| 4 | Rated Power | 100W |
| 5 | Current | ≤13A |
| 6 | Maximum Speed | ＞4500rpm |
| 7 | Communication Protocol | CAN/LIN |
| 8 | Medium Temperature | -40℃-120℃ |
| 9 | Ambient Temperature | -40℃-105℃ |
| 10 | Protection Class | IP6K9K |
