Can a Brushless Motor Run Without an ESC in a Washing Machine?

A brushless motor cannot run correctly without electronic commutation control. It may not need a separate box sold as an ESC, but it still needs a compatible driver, inverter, motor controller, or integrated control module that switches current through the motor phases in the correct sequence.

In washing-machine applications, “ESC” is usually not the most useful purchasing term. Terms such as BLDC inverter motor, brushless inverter motor, BLDC inverter washing machine, and BLDC motor vs inverter motor more directly describe the motor-and-control relationship. In practical terms, a brushless motor needs a control and power stage matched to its electrical characteristics and to the washer cycle.

The right question is therefore not simply “Can a brushless motor run without an ESC?” Ask where commutation is performed, whether the electronics are separate or integrated, and whether voltage, current, feedback, firmware, protection, connectors, and thermal design match the motor and washing machine.

Why Does a BLDC Motor Need an Inverter or Motor Driver?

A BLDC motor uses a permanent-magnet rotor and electronically switched stator phases. Removing brushes eliminates mechanical commutation, but it does not eliminate commutation itself. The electronic controller must create the rotating magnetic field and regulate phase current as speed and torque demand change.

Fixed DC Power Does Not Create the Required Phase Sequence

Applying DC power directly to arbitrary BLDC terminals does not create continuous rotation. The rotor may move briefly, lock, draw excessive current, or fail to start. A bldc inverter motor requires semiconductor switching in a timed sequence so the stator field remains correctly positioned relative to the rotor.

Commutation Must Match the Exact Motor

Pole count, winding connection, phase resistance, inductance, back EMF, rotor-position feedback, speed range, and current limits influence the control strategy. A controller designed for one brushless inverter motor should not be assumed compatible with another simply because both are called BLDC.

A Washing Machine Needs Speed, Torque, Reversal, and Protection Logic

Washing cycles require low-speed rotation, frequent reversing, acceleration, high-speed spin, braking, and controlled stopping. The electronics also need defined responses to overcurrent, abnormal voltage, overheating, stall, feedback loss, wiring faults, and communication errors. Nanyang’s Drivers product is an appliance-specific BLDC controller/driver designed around these functions.

ESC vs BLDC Inverter Motor Driver: What Is the Difference?

The word ESC is common in RC vehicles, drones, and other compact motor systems. In appliance engineering, terms such as inverter, BLDC driver, motor controller, and drive module are more common. The names overlap, but the intended voltage range, interfaces, command logic, cooling, duty cycle, fault strategy, electromagnetic compatibility, and safety requirements can be very different. The same control relationship explains why an inverter is used in a BLDC motor: the inverter supplies the timed phase switching and current control required for commutation.

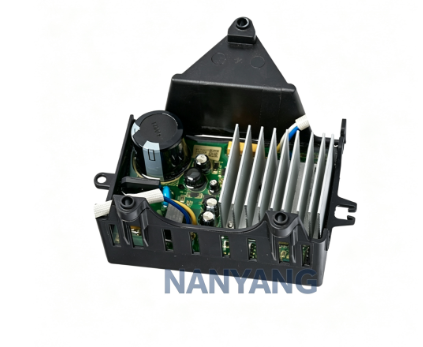

A Separate Driver Keeps Electronics Outside the Motor

Many washing machines place the power stage and control electronics in a separate housing. In this architecture, define the mains or DC-bus input, phase outputs, feedback signals, communication protocol, grounding, connectors, harness, cooling, mounting, and fault reporting. The motor and board remain one functional drive system even when purchased as separate parts.

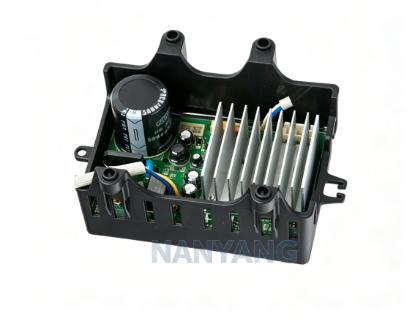

An Integrated Brushless Inverter Still Performs ESC Functions

Some assemblies package the motor and control electronics more closely. The appliance may not contain any component labeled ESC, yet the same essential functions remain: phase switching, current control, commutation, speed regulation, torque control, braking, and protection. Packaging does not remove the need for matched electronics. This integrated architecture is also commonly discussed as a brushless inverter motor in washing-machine applications.

Use Washing-Machine Terminology in the RFQ

For an OEM request, describe the required BLDC motor driver or inverter functions rather than asking for a generic ESC. Nanyang R&D support can help define the motor-controller interface around the actual drum, load, speed range, voltage, and wash program.

Can an RC ESC Control a Washing Machine Brushless Motor?

It should not be treated as a normal shortcut. An RC ESC may spin a motor under limited bench conditions, but that does not prove compatibility with a washing machine. Voltage and current ratings are only the first check; feedback, startup method, switching strategy, commands, thermal limits, protection, EMC, moisture, vibration, and appliance safety also matter.

Peak Current Claims Do Not Prove Washer-Cycle Compatibility

A washing machine can require loaded startup, repeated reversal, controlled low speed, long spin periods, braking, and restart after faults. A peak-current label measured for a short hobby duty may not represent those conditions. Continuous and transient current, heat-sink temperature, DC-bus behavior, and fault thresholds must be evaluated through complete cycles.

Feedback and Command Interfaces Must Match

One controller may use Hall sensors, another may estimate rotor position from back EMF, and another may use an encoder or proprietary interface. A washer control board may issue digital speed or torque commands instead of a hobby throttle signal. Connector adaptation alone does not make the control logic compatible.

Complete Appliance Validation Cannot Be Replaced by a Spin Test

Wet load, imbalance, cabinet vibration, moisture, acoustic limits, electromagnetic compatibility, and service behavior all affect the drive system. Review the Nanyang testing capability when defining loaded-cycle, thermal, noise, vibration, protection, and fault-recovery validation.

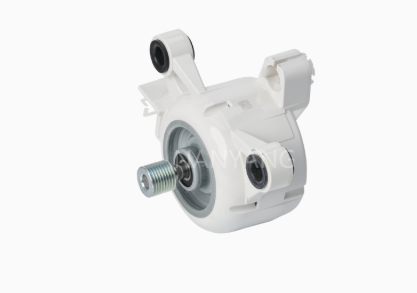

BLDC Motor, Inverter Motor, and Brushless Motor: How the Terms Differ

This distinction matters in engineering specifications and purchasing discussions. “BLDC motor” identifies a motor topology, while “inverter motor” usually describes how power and speed are controlled. A BLDC motor in a washing machine is normally operated by an inverter or driver.

How Should Buyers Match a Brushless Motor and Driver?

Build One Motor-Driver Interface Specification

List winding and pole data, supply and DC-bus voltage, continuous and peak phase current, back EMF, feedback type, speed range, torque points, acceleration, reversal, braking, cooling, insulation, connectors, communications, protection behavior, and ambient conditions. Also define who owns firmware and calibration.

Validate the Exact Motor-Driver Pair

Use the Nanyang washer motor driver for the electronic side, then approve it only with the exact motor, firmware, parameter file, harness, drum, and load configuration intended for production. Record hardware and software revisions so a later component change does not silently alter drive behavior.

Control Production and Firmware Changes

Changes to semiconductors, capacitors, sensors, firmware, winding data, connectors, or cooling can change starting, current, noise, temperature, or protection response. Agree on traceability, software version control, approved substitutions, and engineering-change notification.

Conclusion

A brushless motor cannot operate normally without electronic commutation, but that electronics may be called an ESC, inverter, BLDC driver, motor controller, or integrated drive. For washing-machine projects, define the BLDC inverter motor or brushless inverter motor architecture precisely, specify the complete interface, and validate the exact motor-driver pair under real washer loads. Use the Nanyang contact page to discuss voltage, capacity, torque, speed, controls, and validation requirements for the selected drive system.

FAQ

Q1: Can a brushless motor run without an ESC?
A1: Not without some form of electronic commutation control. The required electronics may be integrated or called an inverter, BLDC driver, or motor controller instead of an ESC.

Q2: Is a BLDC motor the same as an inverter motor?
A2: Not exactly. BLDC describes the brushless motor topology, while inverter usually describes the electronic power-control method. A BLDC motor can be inverter-controlled.

Q3: Can an RC ESC run a washing machine motor?
A3: It should not be assumed compatible. Voltage, current, commutation, feedback, commands, cooling, duty, EMC, safety, and complete appliance testing all need evidence.
